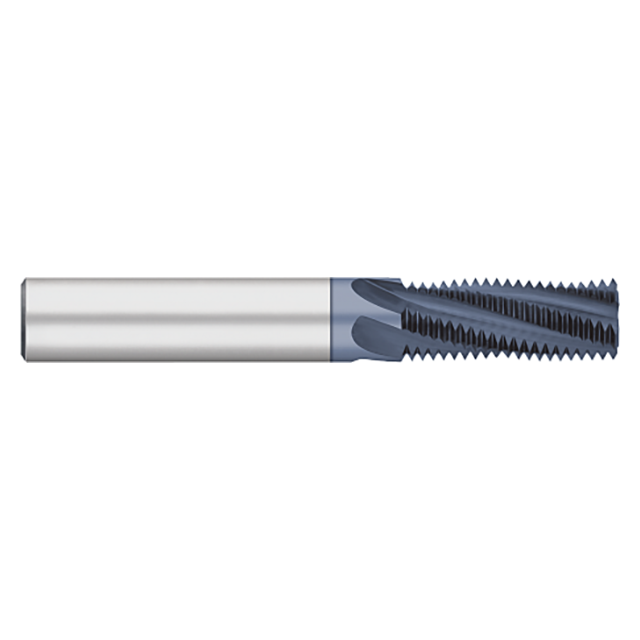

Engineered to cut internal and external Un threads, this solid carbide, fully stocked offering of Thread Mills-Multi-Form-Un Threads is optimized to mill right hand and left hand threads.
Features:
- Cuts internal and external Un threads
- Mills right hand and left hand threads
- AlTiN coating offers increased wear and heat resistance
- Solid carbide
- CNC ground in the USA
Product Specifications
| Manufacturer Part Number | TC84019 |
| Cutter Diameter (Inch) | 0.2900" |
| Length of Cut (Inch) | 0.7500" (3/4) |
| Shank Diameter (Inch) | 0.3125" (5/16) |
| Overall Length (Inch) | 3.0000" (3) |
| Number of Flutes | 4 |
| Thread Size (Inch) | 3/8-16 |
| Substrate | Carbide |
| Coating | ALTIN |
| Product Type | Helical Flute Thread Mill |
