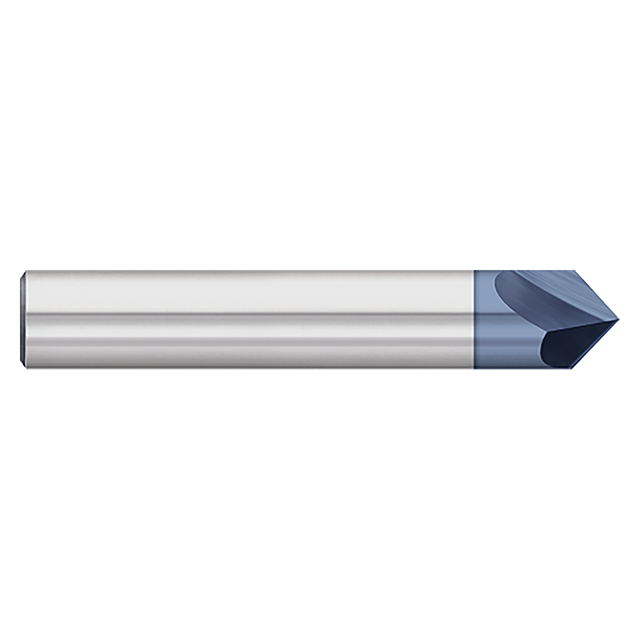

Features:
- Pointed tip geometry for general purpose chamfering and deburring applications in narrow grooves, slots, and small holes
- 2 flute
- AlTiN coating offers increased wear and heat resistance
- Solid carbide
- CNC ground in the USA
Product Specifications
| Manufacturer Part Number | TC85342 |
| Cutter Diameter (Inch) | 0.3125" (5/16) |
| Length of Cut (Inch) | 0.1310" |
| Shank Diameter (Inch) | 0.3125" (5/16) |
| Overall Length (Inch) | 2.5000" (2-1/2) |
| Tip (Inch) | 0.0100" |
| Number of Flutes | 2 |
| Included Angle (Degree) | 100 Degree |
| Angle per Side (Degree) | 50 Degree |
| Substrate | Carbide |
| Coating | AlTiN |
| Product Type | Chamfer Mill |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
Titan USA
Cutter Diameter (Inch):
5/16"
Cutter Diameter (Decimal Inch):
0.3125"
Cutter Diameter (mm):
7.94mm
Shank Diameter (Inch):
5/16"
Shank Diameter (Decimal Inch):
0.3125"
Shank Diameter (mm):
7.94mm
Length of Cut (Inch):
11/84"
Length of Cut (Decimal Inch):
0.1310"
Length of Cut (mm):
3.33mm
Overall Length (Inch):
2-1/2"
Overall Length (Decimal Inch):
2.5000"
Overall Length (mm):
63.50mm
Included Angle:
100 Degree
Number of Flutes:
2
Finish/Coating:
AlTiN
Material:
carbide
