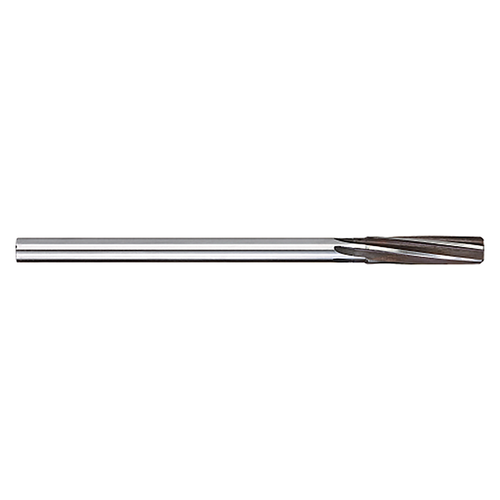

Designed to expand an existing hole or perfect a finish in blind hole applications, this offering of solid carbide Titan USA Reamers features spiral flute geometry and a reduced neck for through hole clearance.
Features:
- Spiral flute geometry best suited for blind holes
- Reduced neck for through hole clearance
- Expand an existing hole to a precise size or create a perfect hole finish
- 45 Degree chamfer angle naturally guides the reamer into the hole
- Solid carbide
- Precision manufactured in the USA
Product Specifications
| Manufacturer Part Number | TC86950 |
| Reamer Diameter (Inch) | 0.0469" (3/64) |
| Margin Length (Inch) | 0.3750" (3/8) |
| Shank Diameter (Inch) | 0.0404" |
| Overall Length (Inch) | 1.5000" (1-1/2) |
| Number of Flutes | 4 |
| Size | 3/64" |
| Substrate | Carbide |
| Chamfer Length (Inch) | 0.0100" |
| Coating | Uncoated |
| Product Type | Chucking Reamer |
