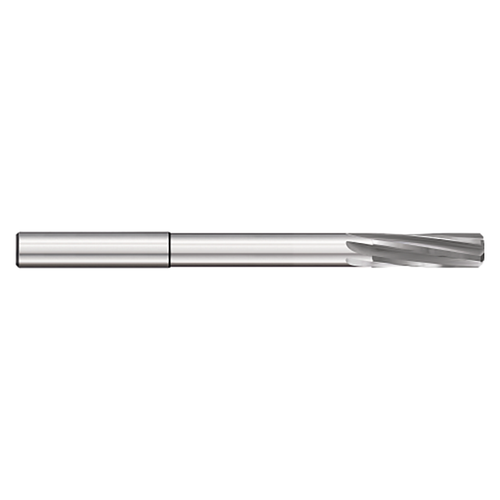

Designed to expand an existing hole or perfect a finish in blind hole applications, this offering of solid carbide Titan USA Reamers features spiral flute geometry and a reduced neck for through hole clearance.
Features:
- Spiral flute geometry best suited for blind holes
- Reduced neck for through hole clearance
- Expand an existing hole to a precise size or create a perfect hole finish
- 45 Degree chamfer angle naturally guides the reamer into the hole
- Solid carbide
- Precision manufactured in the USA
Product Specifications
| Manufacturer Part Number | TC86962 |
| Reamer Diameter (Inch) | 0.2344" (15/64) |
| Margin Length (Inch) | 1.0000" (1) |
| Shank Diameter (Inch) | 0.2344" (15/64) |
| Overall Length (Inch) | 3.0000" (3) |
| Number of Flutes | 4 |
| Size | 15/64" |
| Substrate | Carbide |
| Chamfer Length (Inch) | 0.0250" |
| Coating | Uncoated |
| Product Type | Chucking Reamer |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
Titan USA
Reamer Diameter (Inch):
15/64"
Reamer Diameter (Decimal Inch):
0.2344"
Reamer Diameter (mm):
5.95mm
Overall Length (Inch):
3"
Overall Length (Decimal Inch):
3.0000"
Overall Length (mm):
76.20mm
Flute Length (Inch):
1"
Flute Length (Decimal Inch):
1.0000"
Flute Length (mm):
25.40mm
Number of Flutes:
4
Material:
Carbide
Finish/Coating:
Uncoated
