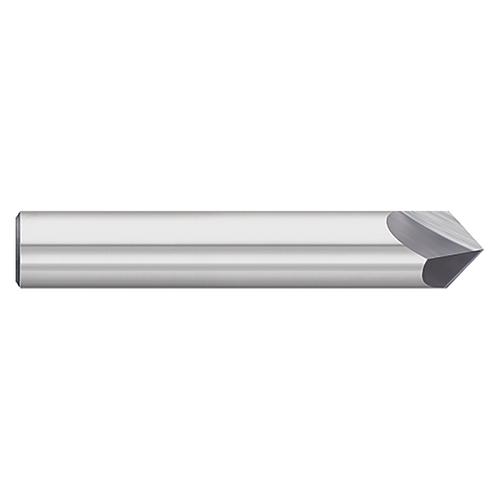

Titan USA TC87772 | 0.3125" (5/16) Diameter x 0.3125" (5/16) Shank x 0.0730" LOC x 2.5000" (2-1/2) OAL 120 Degree Included Angle 4 Flute Uncoated Carbide Chamfer Mill

$25.56
interval quantity:
1
SKU:
25230612
Weight:
0.06 LBS
Shipping:
Calculated at Checkout

Fully stocked in 60 Degree, 82 Degree, 90 Degree, 100 Degree, and 120 Degree styles, this offering of Titan USA Chamfer Mills features a flat tip (non-cutting) design for increased strength in chamfering and profiling applications.

Features:

  • Flat tip (non-cutting) design for increased strength in chamfering and profiling applications
  • Fully stocked in 60 Degree, 82 Degree, 90 Degree, 100 Degree, and 120 Degree styles
  • 4 flutes
  • AlTiN coating offers increased wear and heat resistance
  • Solid carbide
  • CNC ground in the USA

Product Specifications
Manufacturer Part NumberTC87772
Cutter Diameter (Inch)0.3125" (5/16)
Length of Cut (Inch)0.0730"
Shank Diameter (Inch)0.3125" (5/16)
Theoretical Tip Length (Inch)0.0170"
Included Angle (Degree)120 Degree
Overall Length (Inch)2.5000" (2-1/2)
Number of Flutes4
Tip (Inch)0.0600"
Angle per Side60 Degree
SubstrateCarbide
CoatingUncoated
Product TypeChamfer Mill
