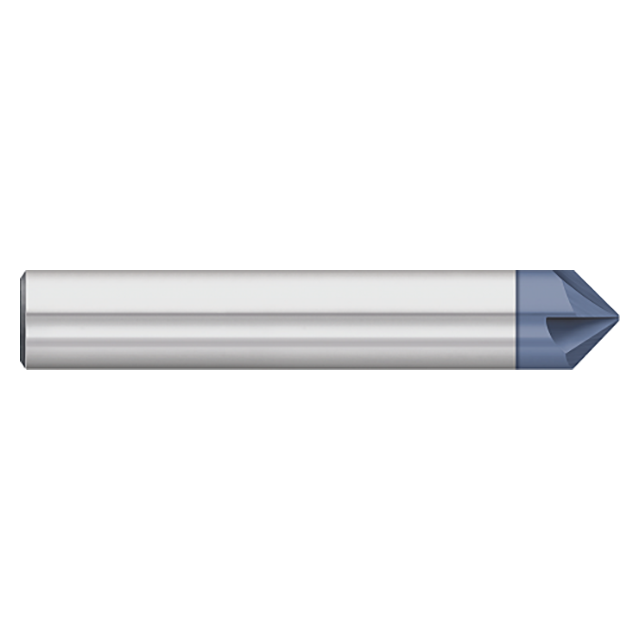

Fully stocked in 60 Degree, 82 Degree, 90 Degree, 100 Degree, and 120 Degree styles, this offering of Titan USA Chamfer Mills features a flat tip (non-cutting) design for increased strength in chamfering and profiling applications.
Features:
- Flat tip (non-cutting) design for increased strength in chamfering and profiling applications
- Fully stocked in 60 Degree, 82 Degree, 90 Degree, 100 Degree, and 120 Degree styles
- 4 flutes
- AlTiN coating offers increased wear and heat resistance
- Solid carbide
- CNC ground in the USA
Product Specifications
| Manufacturer Part Number | TC87789 |
| Cutter Diameter (Inch) | 0.5000" (1/2) |
| Length of Cut (Inch) | 0.3640" |
| Shank Diameter (Inch) | 0.5000" (1/2) |
| Theoretical Tip Length (Inch) | 0.0690" |
| Included Angle (Degree) | 60 Degree |
| Overall Length (Inch) | 3.0000" (3) |
| Number of Flutes | 4 |
| Tip (Inch) | 0.0800" |
| Angle per Side | 30 Degree |
| Substrate | Carbide |
| Coating | ALTIN |
| Product Type | Chamfer Mill |
