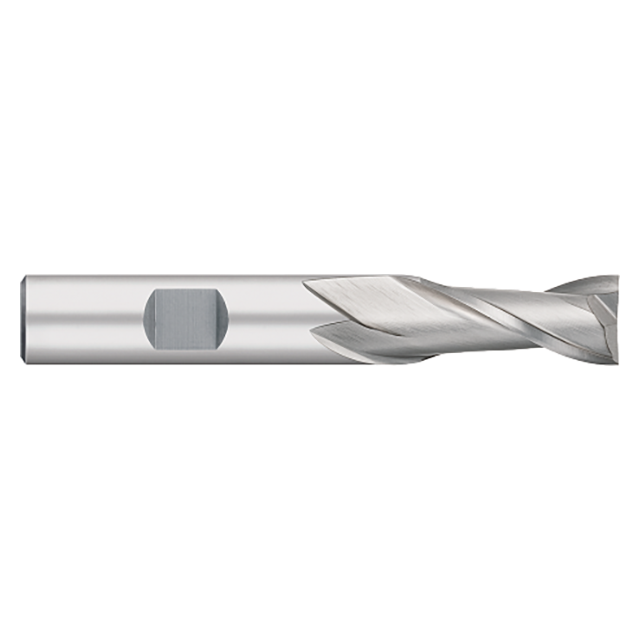

Titan USA's fully stocked product offering of cobalt General Purpose End Mills feature 2 flutes, a square profile, and a 30 Degree helix angle.
Features:
- 2 flutes
- Center cutting
- M42 cobalt
- CNC ground in the USA
Product Specifications
| Manufacturer Part Number | TE82701 |
| Cutting Diameter (Inch) | 0.1250" (1/8) |
| Shank Diameter | 0.3750" (3/8) |
| Overall Length (Inch) | 2.3125" (2-5/16) |
| Length of Cut (Inch) | 0.3750" (3/8) |
| Number of Flutes | 2 |
| Coating | Uncoated |
| Substrate | Cobalt |
| Product Type | Square End Mill |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
Titan USA
Cutter Diameter (Inch):
1/8"
Cutter Diameter (Decimal Inch):
0.1250"
Cutter Diameter (mm):
3.18mm
Shank Diameter (Inch):
3/8"
Shank Diameter (Decimal Inch):
0.3750"
Shank Diameter (mm):
9.53mm
Length of Cut (Inch):
3/8"
Length of Cut (Decimal Inch):
0.3750"
Length of Cut (mm):
9.53mm
Overall Length (Inch):
2-5/16"
Overall Length (Decimal Inch):
2.3125"
Overall Length (mm):
58.74mm
Helix Angle:
30 Degree
Number of Flutes:
2
Finish/Coating:
Uncoated
Material:
Cobalt
interval quantity:
1
