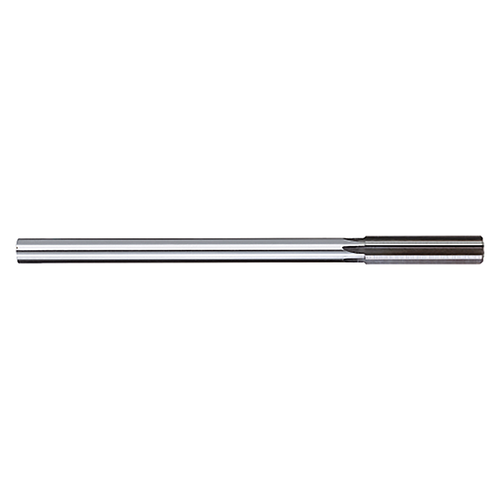

This fully stocked offering of Titan USA right hand spiral, dowel pin reamers are CNC ground in the USA from high speed steel, and are engineered for efficient chip evacuation in blind hole applications.
Features:
- General purpose reamers featuring a 45 Degree chamfer angle
- Spiral flutes for increased chip evacuation in blind hole applications
- 4 and 6 flute styles
- High speed steel
- CNC ground in the USA
Product Specifications
| Manufacturer Part Number | TR96960 |
| Reamer Diameter (Inch) | 0.4355" |
| Margin Length (Inch) | 1.7500" (1-3/4) |
| Shank Diameter (Inch) | 0.3730" |
| Overall Length (Inch) | 7.0000" (7) |
| Number of Flutes | 6 |
| Substrate | High Speed Steel |
| Coating | Uncoated |
| Product Type | Chucking Reamer |
