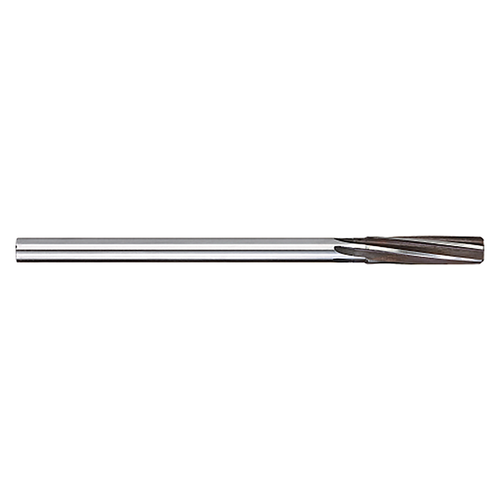

Excellent for through-hole applications, Titan USA offers this high-speed steel left hand chucking reamer in flute counts ranging from 4 to 12.
Features:
- Optimized for use in through holes as chips are pushed ahead of the tool and into the hole
- Precision manufactured in the USA
Product Specifications
| Manufacturer Part Number | TR97013 |
| Reamer Diameter (Inch) | 0.0420" |
| Margin Length (Inch) | 0.5000" (1/2) |
| Shank Diameter (Inch) | 0.0390" |
| Shank Diameter (mm) | 1mm |
| Overall Length (Inch) | 2.5000" (2-1/2) |
| Number of Flutes | 4 |
| Size | #58 |
| Coating | Uncoated |
| Substrate | High Speed Steel |
| Product Type | Chucking Reamer |
