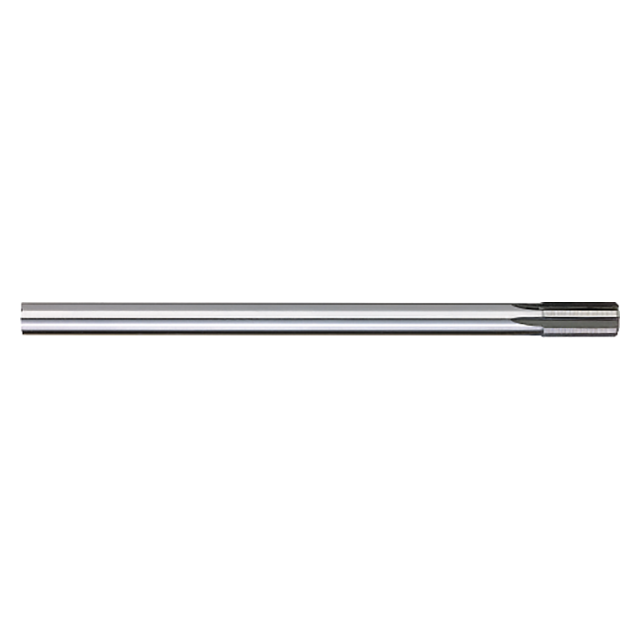

Ground from high speed steel, this fully stocked offering of expansion style reamers feature straight flutes for through and blind hole applications, and are engineered with a 45 Degree chamfer angle.
Features:
- Expansion style for resharpening to original size
- 6 and 8 flute styles
- Straight flutes for through and blind hole applications
- High speed steel
- Precision manufactured in the USA
Product Specifications
| Manufacturer Part Number | TR97229 |
| Reamer Diameter (Inch) | 1.2500" (1-1/4) |
| Margin Length (Inch) | 1.8750" (1-7/8) |
| Shank Diameter (Inch) | 1.0000" (1) |
| Overall Length (Inch) | 11.5000" (11-1/2) |
| Number of Flutes | 8 |
| Substrate | High Speed Steel |
| Coating | Uncoated |
| Product Type | Machine Expansion Reamer |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
Titan USA
Reamer Diameter (Inch):
1-1/4"
Reamer Diameter (Decimal Inch):
1.2500"
Reamer Diameter (mm):
31.75mm
Flute Length (Inch):
1-7/8"
Flute Length (Decimal Inch):
1.8750"
Flute Length (mm):
47.63mm
Overall Length (Inch):
11-1/2"
Overall Length (Decimal Inch):
11.5000"
Overall Length (mm):
292.10mm
Material:
High Speed Steel
Shank Diameter (Inch):
1"
Shank Diameter (Decimal Inch):
1.0000"
Shank Diameter (mm):
25.40mm
interval quantity:
1
