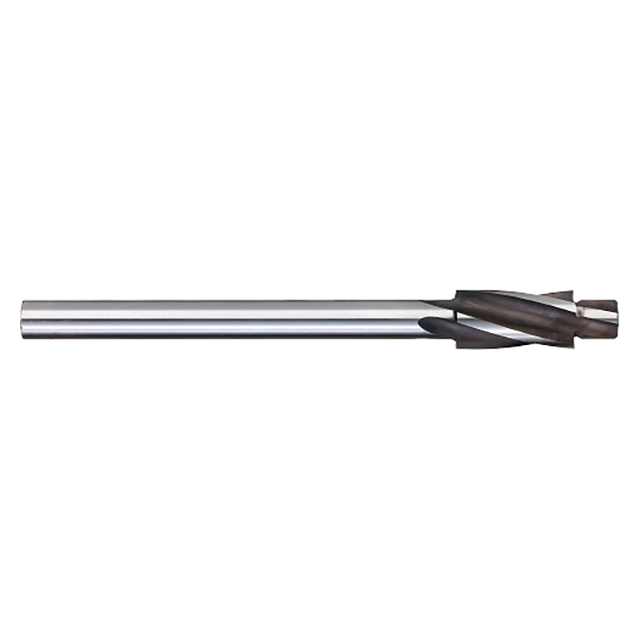

Titan USA's fully stocked offering of capscrew style reamers are precision manufactured in the USA from high speed steel, and feature a unique style that allows capscrews to sit flush with the surface of a part.
Features:
- General purpose reamers featuring a 45 Degree chamfer angle
- Capscrew counterbore style
- Unique style allowing capscrews to sit flush with the surface of a part
- Built in pilot to maintain alignment in existing hole
- High speed steel
- Precision manufactured in the USA
Product Specifications
| Manufacturer Part Number | TR97491 |
| Cutter Diameter (Inch) | 0.5850" |
| Flute Length (Inch) | 1.2500" (1-1/4) |
| End Length (Inch) | 0.3750" (3/8) |
| Shank Diameter (Inch) | 0.5000" (1/2) |
| Overall Length (Inch) | 6.5000" (6-1/2) |
| Number of Flutes | 4 |
| Size | 3/8 |
| Pilot Diameter (Inch) | 0.3900" (25/64) |
| Substrate | High Speed Steel |
| Coating | Uncoated |
| Product Type | Solid Pilot Counterbore |
