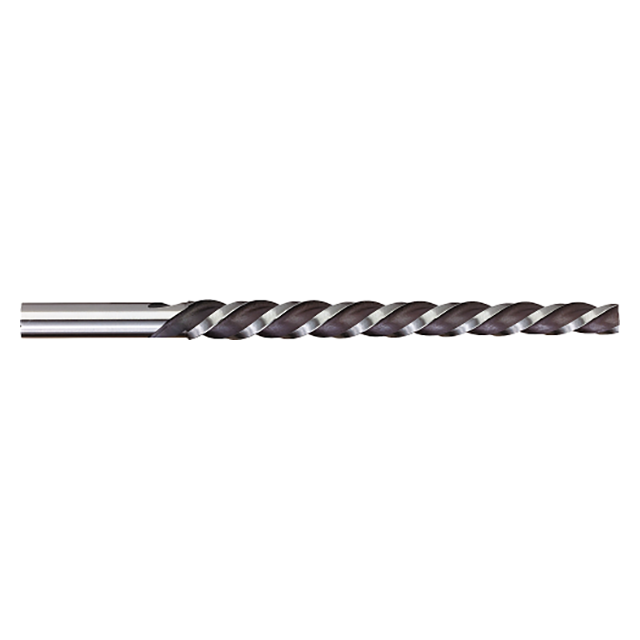

This general purpose, fully stocked offering of Titan USA's taper pin high speed steel reamers feature helical flutes for increased shearing action on the chamfer, ideal for superior part finish.
Features:
- General purpose reamers featuring a 45 Degree chamfer angle
- Flute options from 4 to 10
- Helical flutes for increased shearing action for superior finish
- Spiral flutes for increased chip evacutaion in blind hole applications
- Straight flutes for through and blind hole applciations
- High speed steel
- Precision manufactured in the USA
Product Specifications
| Manufacturer Part Number | TR97555 |
| Reamer Diameter (Inch) | 0.2294" |
| Minor Diameter (Inch) | 0.1813" |
| Margin Length (Inch) | 2.9375" (2-15/16) |
| Shank Diameter (Inch) | 0.2344" (15/64) |
| Overall Length (Inch) | 3.6875" (3-11/16) |
| Number of Flutes | 6 |
| Size | #3 |
| Substrate | High Speed Steel |
| Coating | Uncoated |
| Product Type | Taper Pin Reamer |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
Titan USA
Reamer Diameter (Inch):
14/61"
Reamer Diameter (Decimal Inch):
0.2294"
Reamer Diameter (mm):
5.83mm
Overall Length (Inch):
3-11/16"
Overall Length (Decimal Inch):
3.6875"
Overall Length (mm):
93.66mm
Small End Diameter (Inch):
2/11"
Small End Diameter (Decimal Inch):
0.1813"
Small End Diameter (mm):
4.61mm
Material:
High Speed Steel
Finish/Coating:
Uncoated
