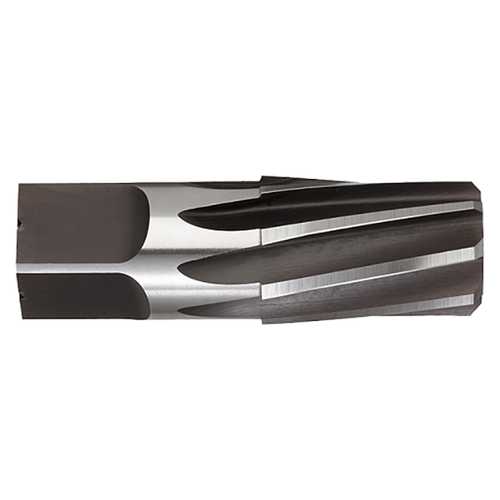

With spiral flutes for through and blind hole applications, these Titan USA high speed steel reamers are precision manufactured in the USA and are fully stocked in 6 to 12 flute options.
Features:
- General purpose reamers featuring a 45 Degree chamfer angle
- Spiral flutes for increased chip evacuation in blind hole applications
- High speed steel
- Precision manufactured in the USA
Product Specifications
| Manufacturer Part Number | TR97650 |
| Reamer Diameter (Inch) | 0.3620" |
| Minor Diameter (Inch) | 0.3160" |
| Across Flat (Inch) | 0.3280" (21/64) |
| Margin Length (Inch) | 0.7500" (3/4) |
| Shank Diameter (Inch) | 0.4375" (7/16) |
| Overall Length (Inch) | 2.1250" (2-1/8) |
| Number of Flutes | 6 |
| Size | 1/8 |
| Substrate | High Speed Steel |
| Coating | Uncoated |
| Product Type | Taper Pipe Reamer |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
Titan USA
Pipe Size (Inch):
1/8"
Pipe Size (Decimal Inch):
0.1250"
Pipe Size (mm):
3.18mm
Small End Diameter (Inch):
6/19"
Small End Diameter (Decimal Inch):
0.3160"
Small End Diameter (mm):
8.03mm
Large End Diameter (Inch):
21/58"
Large End Diameter (Decimal Inch):
0.3620"
Large End Diameter (mm):
9.19mm
Flute Length (Inch):
3/4"
Flute Length (Decimal Inch):
0.7500"
Flute Length (mm):
19.05mm
Material:
High Speed Steel
Finish/Coating:
Uncoated
