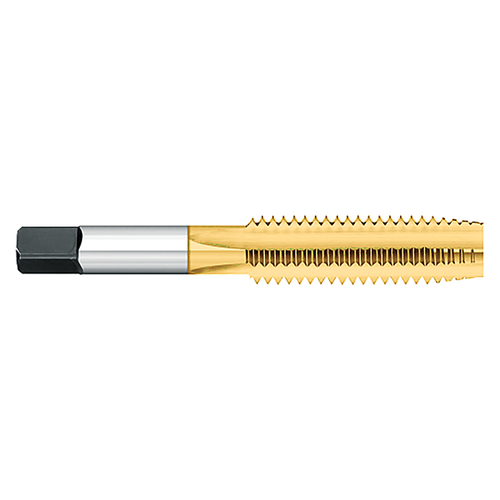

Titan USA TT75726 | M5 X 0.8 Thread x 0.1940" Shank x 0.8750" (7/8) LOC x 2.3750" (2-3/8) OAL D4 Limit 4 Flute TIN Coated High Speed Steel Taper Straight Flute Tap

$9.68
interval quantity:
1
SKU:
17981097
Weight:
0.02 LBS
Shipping:
Calculated at Checkout

Features:

  • For optimal results, use a taper tap for an initial pass, prior to using a Plug or Bottom Tap to finish the thread
  • Taps are on blanks that meet ANSI specifications
  • TiN coating provides improved performance in a wide variety of materials, and generally used in applications with lower cutting speeds
  • High speed steel
  • CNC ground in the USA

Product Specifications
Manufacturer Part NumberTT75726
Shank Diameter (Inch)0.1940"
Length of Cut (Inch)0.8750" (7/8)
Across Flat (Inch)0.1520"
End Length (Inch)0.2500" (1/4)
Overall Length (Inch)2.3750" (2-3/8)
Thread Size (mm)M5 X 0.8
Number of Flutes4
LimitD4
TypeTaper
CoatingTIN
SubstrateHigh Speed Steel
Product TypeStraight Flute Tap
