Features:
- For optimal results, use a taper tap for an initial pass, prior to using a Plug or Bottom Tap to finish the thread
- Taps are on blanks that meet ANSI specifications
- TiN coating provides improved performance in a wide variety of materials, and generally used in applications with lower cutting speeds
- High speed steel
- CNC ground in the USA
Product Specifications

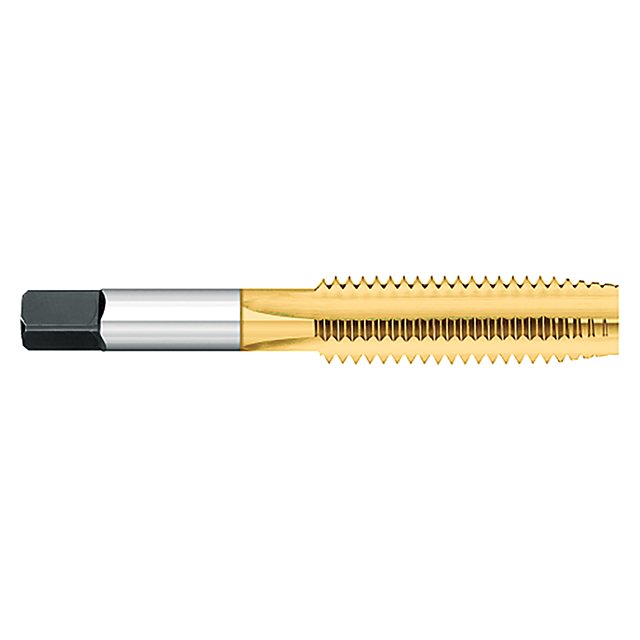

| Manufacturer Part Number | TT75754 |
| Shank Diameter (Inch) | 0.3810" |
| Length of Cut (Inch) | 1.2500" (1-1/4) |
| Across Flat (Inch) | 0.2860" |
| End Length (Inch) | 0.4375" (7/16) |
| Overall Length (Inch) | 2.9375" (2-15/16) |
| Thread Size (mm) | M10 X 1.25 |
| Number of Flutes | 4 |
| Limit | D5 |
| Type | Bottom |
| Coating | TIN |
| Substrate | High Speed Steel |
| Product Type | Straight Flute Tap |
