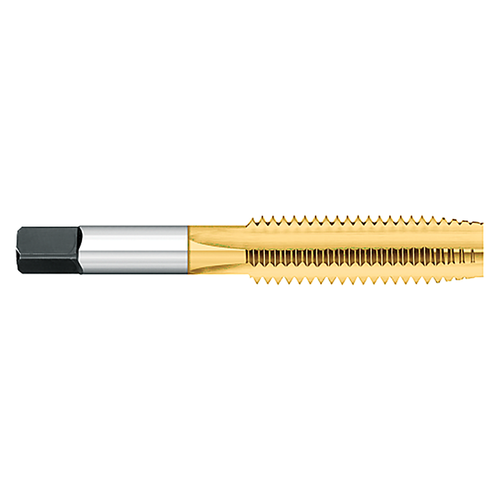

Titan USA TT75828 | M30 X 3.5 Thread x 1.0210" Shank x 2.5625" (2-9/16) LOC x 5.4375" OAL D9 Limit 4 Flute TIN Coated High Speed Steel Taper Straight Flute Tap

SKU: 17981148 Weight: 1.04 LBS Minimum Purchase: 1 unit
UPC:
$261.50 $224.89
(You save $36.61)
Shipping: Calculated at Checkout

About This Item

Features:

  • For optimal results, use a taper tap for an initial pass, prior to using a Plug or Bottom Tap to finish the thread
  • Taps are on blanks that meet ANSI specifications
  • TiN coating provides improved performance in a wide variety of materials, and generally used in applications with lower cutting speeds
  • High speed steel
  • CNC ground in the USA

Product Specifications
Manufacturer Part NumberTT75828
Shank Diameter (Inch)1.0210"
Length of Cut (Inch)2.5625" (2-9/16)
Across Flat (Inch)0.7660"
End Length (Inch)1.0000" (1)
Overall Length (Inch)5.4375"
Thread Size (mm)M30 X 3.5
Number of Flutes4
LimitD9
TypeTaper
CoatingTIN
SubstrateHigh Speed Steel
Product TypeStraight Flute Tap
