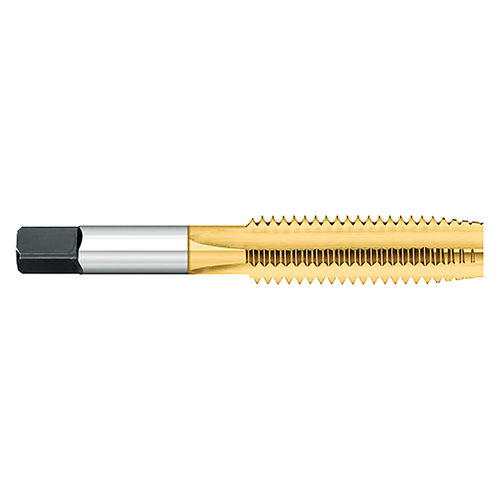

This fully stocked Titan USA set of metric CNC tooling features high speed steel hand taps, ground in the USA on blanks that meet ANSI specifications.
Features:
- Taps are on blanks that meet ANSI specifications
- High speed steel
- CNC ground in the USA
Product Specifications
| Manufacturer Part Number | TT75884 |
| Across Flat (Inch) | 0.6720" (43/64) |
| Length of Cut (Inch) | 2.5000" (2-1/2) |
| End Length (Inch) | 0.8750" (7/8) |
| Shank Diameter (Inch) | 0.8960" |
| Overall Length (Inch) | 5.1250" |
| Thread Size (Inch) | M27 X 3.0 |
| Limit | D8 |
| Coating | TiN |
| Substrate | High Speed Steel |
| Number of Flutes | 4 |
| Product Type | Tap Set |
