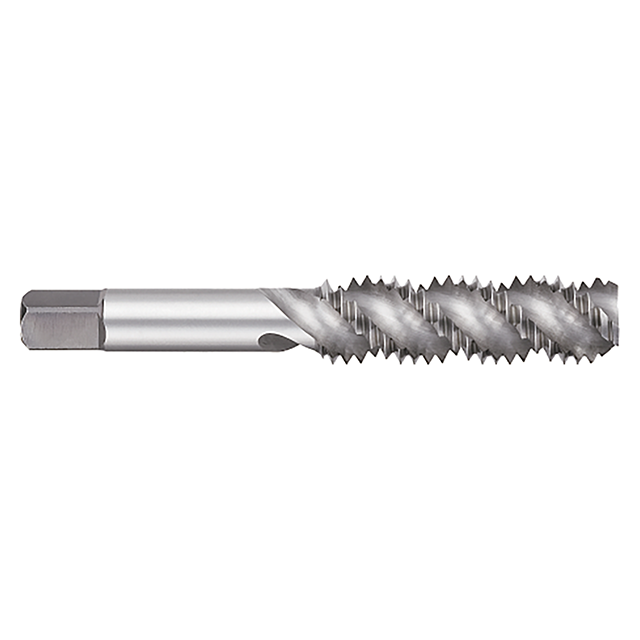

Name: Titan USA TT76103 | #3-56 Thread x 0.1410" Shank x 0.5000" (1/2) Thread Length x 1.8125" (1-13/16) OAL H2 Limit 2 Flute Uncoated High Speed Steel Semi Bottom Spiral Flute Tap
Brand: Titan USA
SKU: 17981181
Price: 21.15 USD
Availability: InStock

Titan USA TT76103 | #3-56 Thread x 0.1410" Shank x 0.5000" (1/2) Thread Length x 1.8125" (1-13/16) OAL H2 Limit 2 Flute Uncoated High Speed Steel Semi Bottom Spiral Flute Tap

$21.15

interval quantity:

SKU:

17981181

Weight:

0.01 LBS

Shipping:

Calculated at Checkout

Features
Reviews
Other Details

Features:

Optimized for relatively deep hole tapping in copper, brass, aluminum, and other soft ductile materials
Slightly longer chamfer distributes cutting over greater number of teeth for increased production
Can be used for plug or bottoming applications
52 Degree helix
Taps are on blanks that meet ANSI specifications
High speed steel
CNC ground in the USA

Product Specifications

Manufacturer Part Number	TT76103
Across Flat (Inch)	0.1100"
Length of Cut (Inch)	0.5000" (1/2)
End Length (Inch)	0.1875" (3/16)
Shank Diameter (Inch)	0.1410"
Overall Length (Inch)	1.8125" (1-13/16)
Thread Size (Inch)	#3-56
Number of Flutes	2
Limit	H2
Type	Semi Bottom
Substrate	High Speed Steel
Coating	Uncoated
Product Type	Spiral Flute Tap

Warning:

This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.

For more information, visit www.P65Warnings.ca.gov
