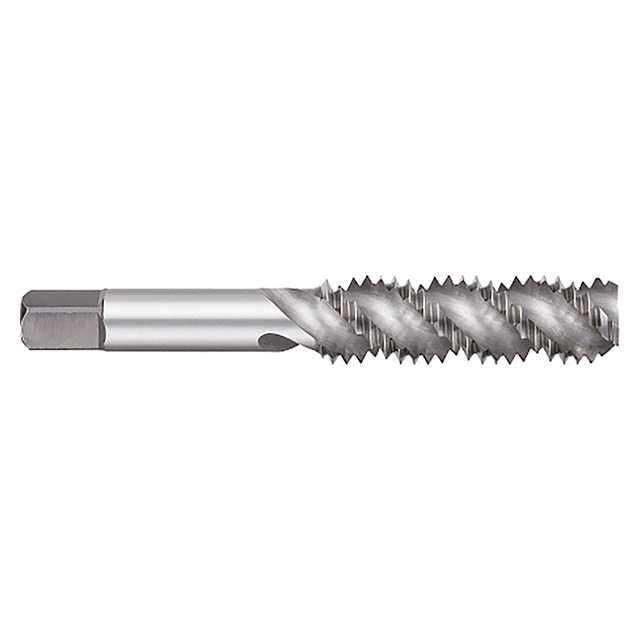

Titan USA TT76155 | 5/8"-18 Thread x 0.4800" Shank x 1.8125" (1-13/16) Thread Length x 3.8125" (3-13/16) OAL H3 Limit 4 Flute Uncoated High Speed Steel Semi Bottom Spiral Flute Tap

$109.30 $94.00
(You save $15.30)
Brand:
Titan USA
Overall Length (Inch):
3-13/16"
Overall Length (Decimal Inch):
3.8125"
Overall Length (mm):
96.84mm
Number of Flutes:
4
Finish/Coating:
Uncoated
Material:
High Speed Steel
interval quantity:
1
SKU:
17981207
UPC:
Weight:
0.20 LBS
Minimum Purchase:
1 unit
Shipping:
Calculated at Checkout

Related Products

Features:

  • Optimized for relatively deep hole tapping in copper, brass, aluminum, and other soft ductile materials
  • Slightly longer chamfer distributes cutting over greater number of teeth for increased production
  • Can be used for plug or bottoming applications
  • 52 Degree helix
  • Taps are on blanks that meet ANSI specifications
  • High speed steel
  • CNC ground in the USA

Product Specifications
Manufacturer Part NumberTT76155
Across Flat (Inch)0.3600"
Length of Cut (Inch)1.8125" (1-13/16)
End Length (Inch)0.5625" (9/16)
Shank Diameter (Inch)0.4800"
Overall Length (Inch)3.8125" (3-13/16)
Thread Size (Inch)5/8"-18
Number of Flutes4
LimitH3
TypeSemi Bottom
SubstrateHigh Speed Steel
CoatingUncoated
Product TypeSpiral Flute Tap
