Features:
- Thread forming taps have no flutes or cutting edges and provide chipless tapping
- Lube grooves for lubrication and venting in blind holes
- Taps are on blanks that meet ANSI specifications
- Plug - 4.0 Thread Chamfer for through hole tapping
- Uncoated is great for lead, stainless steels, carbon steels, aluminum and most other ductile materials producing stringy chips
- TiN coating provides improved performance in a wide variety of materials, and is generally used in applications with lower cutting speeds
- High speed steel
- CNC ground in the USA
Product Specifications
| Manufacturer Part Number | TT82865 |
| Shank Diameter (Inch) | 0.2200" |
| Thread Length (Inch) | 0.9375" (15/16) |
| Overall Length (Inch) | 2.3750" (2-3/8) |
| Thread Size (Inch) | #12-24 |
| Across Flat (Inch) | 0.1650" |
| End Length (Inch) | 0.2813" |
| Lube Grooves | 2 |
| Limit | H5 |
| Coating | Uncoated |
| Substrate | High Speed Steel |
| Type | Plug |

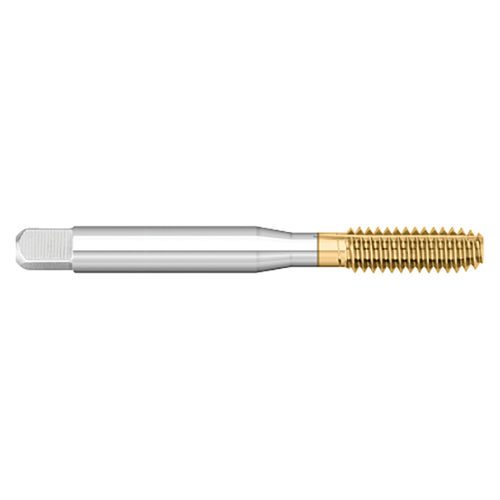

| Product Type | Thread Forming Tap |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
Titan USA
Finish/Coating:
Uncoated
Material:
High Speed Steel
interval quantity:
1
