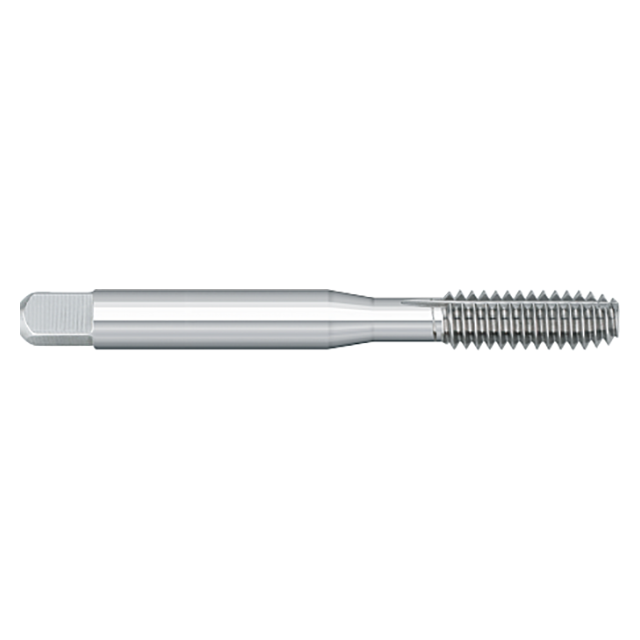

Features:
- High speed steel
- Taps are on blanks that meet ANSI specifications
- Bottom - 2.5 Thread Chamfer for blind hole tapping
- Lube grooves for lubrication and venting in blind holes
- Thread forming taps have no flutes or cutting edges and provide chipless tapping
- Uncoated is great for lead, stainless steels, carbon steels, aluminum and most other ductile materials producing stringy chips
- CNC ground in the USA
Product Specifications
| Manufacturer Part Number | TT82866 |
| Shank Diameter (Inch) | 0.2200" |
| Thread Length (Inch) | 0.9375" (15/16) |
| Overall Length (Inch) | 2.3750" (2-3/8) |
| Thread Size (Inch) | #12-24 |
| Across Flat (Inch) | 0.1650" |
| End Length (Inch) | 0.2813" |
| Lube Grooves | 2 |
| Limit | H5 |
| Coating | Uncoated |
| Substrate | High Speed Steel |
| Type | Bottom |
| Product Type | Thread Forming Tap |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
Titan USA
Shank Diameter (Decimal Inch):
0.2200"
Shank Diameter (mm):
5.59mm
Length of Cut (Inch):
15/16"
Length of Cut (Decimal Inch):
0.9375"
Length of Cut (mm):
23.81mm
Overall Length (Inch):
2-3/8"
Overall Length (Decimal Inch):
2.3750"
Overall Length (mm):
60.33mm
Finish/Coating:
Uncoated
Material:
High Speed Steel
