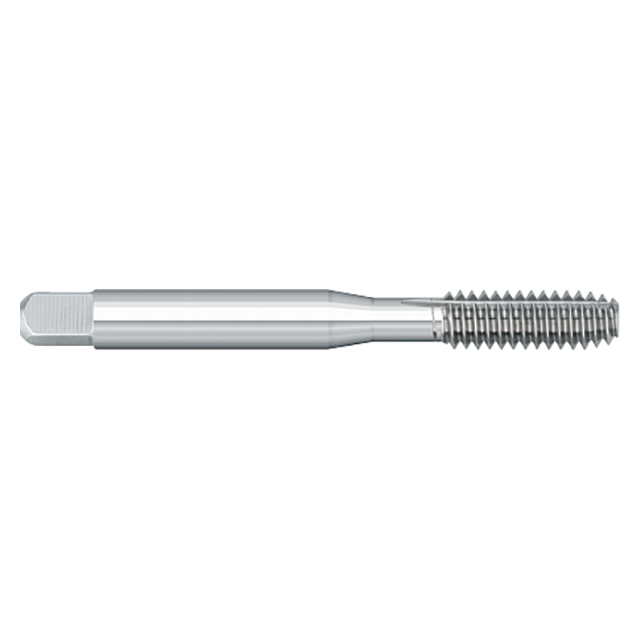

Name: Titan USA TT82874 | 1/4"-20 Thread x 1.0000" (1) Thread Length x 0.2550" Shank x 2.5000" (2-1/2) OAL H8 Limit Uncoated High Speed Steel Bottom Thread Forming Tap
Brand: Titan USA
SKU: 17981311
Price: 13.98 USD
Availability: InStock

Titan USA TT82874 | 1/4"-20 Thread x 1.0000" (1) Thread Length x 0.2550" Shank x 2.5000" (2-1/2) OAL H8 Limit Uncoated High Speed Steel Bottom Thread Forming Tap

$16.25 $13.98

(You save $2.27)

Brand:

Titan USA

Shank Diameter (Decimal Inch):

0.2550"

Shank Diameter (mm):

6.48mm

Length of Cut (Inch):

Length of Cut (Decimal Inch):

1.0000"

Length of Cut (mm):

25.40mm

Overall Length (Inch):

2-1/2"

Overall Length (Decimal Inch):

2.5000"

Overall Length (mm):

63.50mm

Finish/Coating:

Uncoated

Material:

High Speed Steel

interval quantity:

SKU:

17981311

UPC:

Weight:

0.04 LBS

Minimum Purchase:

1 unit

Shipping:

Calculated at Checkout

Features
Reviews
Other Details

Features:

High speed steel
Taps are on blanks that meet ANSI specifications
Bottom - 2.5 Thread Chamfer for blind hole tapping
Lube grooves for lubrication and venting in blind holes
Thread forming taps have no flutes or cutting edges and provide chipless tapping
Uncoated is great for lead, stainless steels, carbon steels, aluminum and most other ductile materials producing stringy chips
CNC ground in the USA

Product Specifications

Manufacturer Part Number	TT82874
Shank Diameter (Inch)	0.2550"
Thread Length (Inch)	1.0000" (1)
Overall Length (Inch)	2.5000" (2-1/2)
Thread Size (Inch)	1/4"-20
Across Flat (Inch)	0.1910"
End Length (Inch)	0.3125" (5/16)
Lube Grooves	2
Limit	H8
Coating	Uncoated
Substrate	High Speed Steel
Type	Bottom
Product Type	Thread Forming Tap

Warning:

This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.

For more information, visit www.P65Warnings.ca.gov
