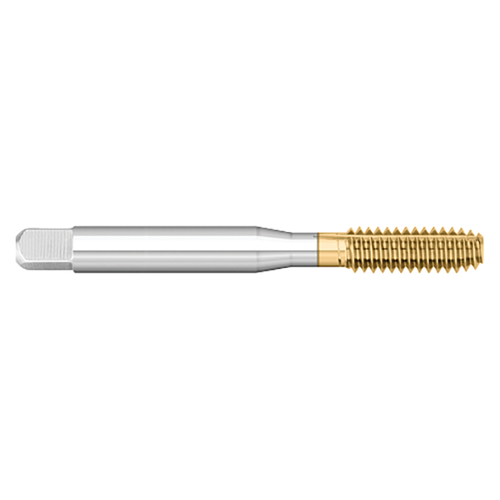

Titan USA TT82898 | 7/16"-14 Thread x 1.4375" (1-7/16) Thread Length x 0.3230" Shank x 3.1563" OAL H7 Limit Uncoated High Speed Steel Bottom Thread Forming Tap

$31.45 $27.05
(You save $4.40)
Brand:
Titan USA
Shank Diameter (Decimal Inch):
0.3230"
Shank Diameter (mm):
8.20mm
Length of Cut (Inch):
1-7/16"
Length of Cut (Decimal Inch):
1.4375"
Length of Cut (mm):
36.51mm
Overall Length (Decimal Inch):
3.1563"
Overall Length (mm):
80.17mm
Finish/Coating:
Uncoated
Material:
High Speed Steel
interval quantity:
1
SKU:
17981333
UPC:
Weight:
0.09 LBS
Minimum Purchase:
1 unit
Shipping:
Calculated at Checkout

Features:

  • High speed steel
  • Taps are on blanks that meet ANSI specifications
  • Bottom - 2.5 Thread Chamfer for blind hole tapping
  • Lube grooves for lubrication and venting in blind holes
  • Thread forming taps have no flutes or cutting edges and provide chipless tapping
  • Uncoated is great for lead, stainless steels, carbon steels, aluminum and most other ductile materials producing stringy chips
  • CNC ground in the USA

Product Specifications
Manufacturer Part NumberTT82898
Shank Diameter (Inch)0.3230"
Thread Length (Inch)1.4375" (1-7/16)
Overall Length (Inch)3.1563"
Thread Size (Inch)7/16"-14
Across Flat (Inch)0.2420"
End Length (Inch)0.4063"
Lube Grooves4
LimitH7
CoatingUncoated
SubstrateHigh Speed Steel
TypeBottom
Product TypeThread Forming Tap

Warning:

This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.

For more information, visit www.P65Warnings.ca.gov
