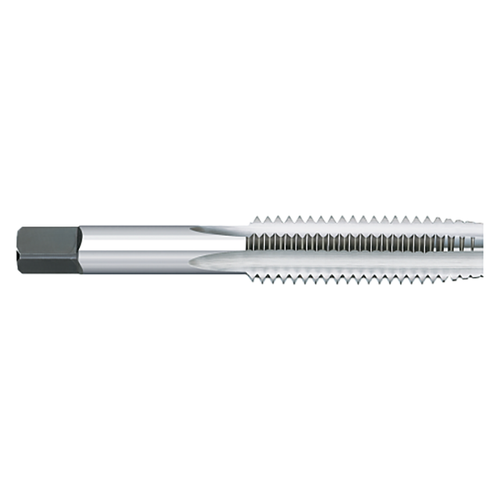

Titan USA TT82980TIN | #1-8 Thread x 0.8000" Shank x 2.5000" (2-1/2) LOC x 5.1250" OAL H4 Limit 4 Flute TiN Coated High Speed Steel Taper Straight Flute Tap

$154.31
interval quantity:
1
SKU:
17981469
Weight:
0.62 LBS
Shipping:
Free Shipping

General Purpose Hand Taps is ready to ship the day of its purchase.

Features:

  • High speed steel
  • Engineered to tap left hand threads
  • Taps are on blanks that meet ANSI specifications
  • For optimal results, use a Taper Tap for an initial pass, prior to using a Plug or Bottom Tap to finish the thread
  • TiN coating provides improved performance in a wide variety of materials, and generally used in applications with lower cutting speeds
  • CNC ground in the USA

Product Specifications
Manufacturer Part NumberTT82980TIN
Shank Diameter (Inch)0.8000"
Length of Cut (Inch)2.5000" (2-1/2)
Overall Length (Inch)5.1250"
Thread Size (Inch)#1-8
Across Flat (Inch)0.6000"
Number of Flutes4
LimitH4
CoatingTiN
SubstrateHigh Speed Steel
TypeTaper
Product TypeStraight Flute Tap
