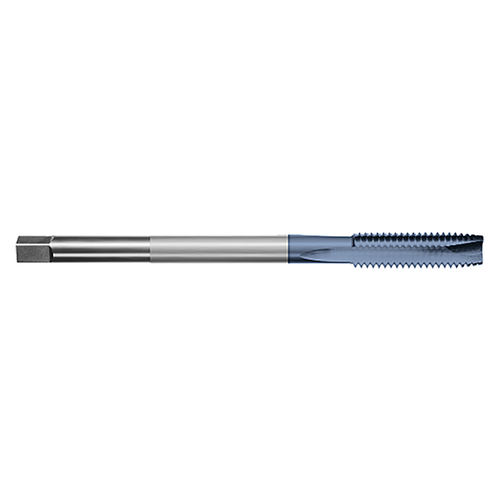

Titan USA TT88906 | 1/4"-28 Thread x 1.0000" (1) Thread Length x 0.1850" Shank x 6.0000" (6) OAL H3 Limit AlTiN Coated High Speed Steel Spiral Point Tap

$81.05 $69.70
(You save $11.35)
Brand:
Titan USA
Thread Limit:
H3
Chamfer:
SP/PT Plug
Finish/Coating:
AlTiN
Material:
High Speed Steel
interval quantity:
1
SKU:
17981553
UPC:
Weight:
0.06 LBS
Minimum Purchase:
1 unit
Shipping:
Calculated at Checkout

Related Products

Features:

  • Undersized, extended shank for increased clearance in deeper tapping applications
  • Taps are on blanks that meet ANSI specifications
  • AlTiN coating offers increased wear and heat resistance
  • High speed steel
  • CNC ground in the USA

Product Specifications
Manufacturer Part NumberTT88906
Shank Diameter (Inch)0.1850"
Length of Cut (Inch)1.0000" (1)
Overall Length (Inch)6.0000" (6)
Across Flat (Inch)0.1390"
End Length (Inch)0.3125" (5/16)
Thread Size (Inch)1/4"-28
LimitH3
CoatingAlTiN
SubstrateHigh Speed Steel
TypeSP/PT Plug
Thread TypeNF
Number of Flutes2
Product TypeSpiral Point Tap
