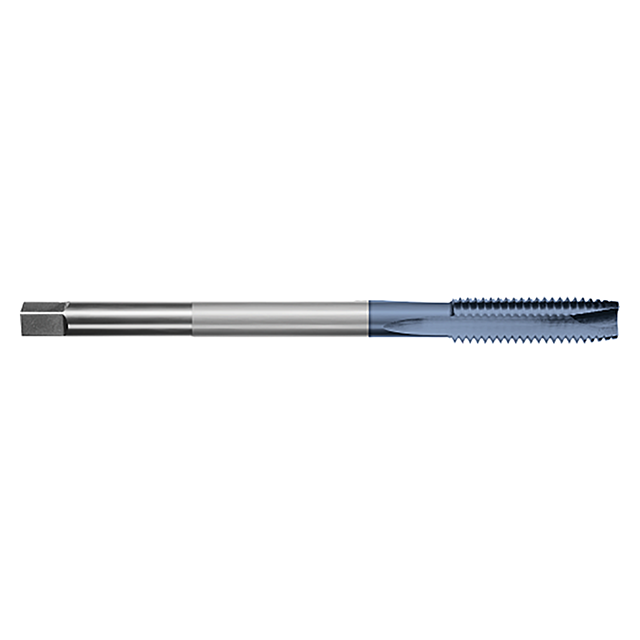

Features:
- Undersized, extended shank for increased clearance in deeper tapping applications
- Taps are on blanks that meet ANSI specifications
- AlTiN coating offers increased wear and heat resistance
- High speed steel
- CNC ground in the USA
Product Specifications
| Manufacturer Part Number | TT88915 |
| Shank Diameter (Inch) | 0.4800" |
| Length of Cut (Inch) | 1.8125" (1-13/16) |
| Overall Length (Inch) | 6.0000" (6) |
| Across Flat (Inch) | 0.3600" |
| End Length (Inch) | 0.5625" (9/16) |
| Thread Size (Inch) | 5/8"-11 |
| Limit | H3 |
| Coating | AlTiN |
| Substrate | High Speed Steel |
| Type | SP/PT Plug |
| Thread Type | NC |
| Number of Flutes | 3 |
| Product Type | Spiral Point Tap |
