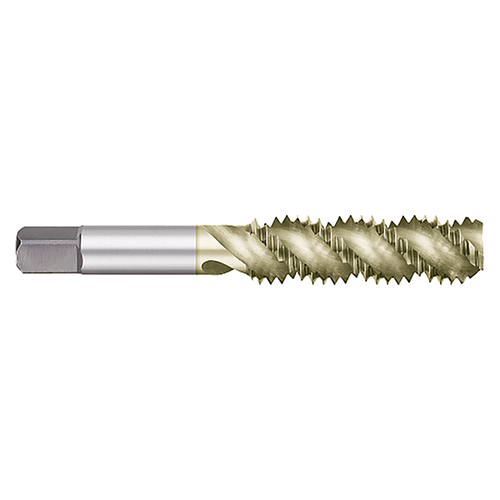

Name: Titan USA TT89101 | #3-48 Thread x 0.1410" Shank x 0.5000" (1/2) Thread Length x 1.8125" (1-13/16) OAL H2 Limit 2 Flute ZrN Coated High Speed Steel Semi Bottom Spiral Flute Tap
Brand: Titan USA
SKU: 17981566
Price: 28.21 USD
Availability: InStock

Titan USA TT89101 | #3-48 Thread x 0.1410" Shank x 0.5000" (1/2) Thread Length x 1.8125" (1-13/16) OAL H2 Limit 2 Flute ZrN Coated High Speed Steel Semi Bottom Spiral Flute Tap

$32.80 $28.21

(You save $4.59)

Brand:

Titan USA

Shank Diameter (Decimal Inch):

0.1410"

Shank Diameter (mm):

3.58mm

Length of Cut (Inch):

1/2"

Length of Cut (Decimal Inch):

0.5000"

Length of Cut (mm):

12.70mm

Overall Length (Inch):

1-13/16"

Overall Length (Decimal Inch):

1.8125"

Overall Length (mm):

46.04mm

Helix Angle:

52 Degree

Number of Flutes:

Finish/Coating:

ZrN

Material:

High Speed Steel

interval quantity:

SKU:

17981566

UPC:

Weight:

0.01 LBS

Minimum Purchase:

1 unit

Shipping:

Calculated at Checkout

Features
Reviews
Other Details

Features:

Optimized for relatively deep hole tapping in copper, brass, aluminum, and other soft ductile materials
Slightly longer chamfer distributes cutting over greater number of teeth for increased production
Can be used for plug or bottoming applications
52 Degree helix
Taps are on blanks that meet ANSI specifications
ZrN coating offers increased speed rates and prolonged tool life
High speed steel
CNC ground in the USA

Product Specifications

Manufacturer Part Number	TT89101
Across Flat (Inch)	0.1100"
Length of Cut (Inch)	0.5000" (1/2)
End Length (Inch)	0.1875" (3/16)
Shank Diameter (Inch)	0.1410"
Overall Length (Inch)	1.8125" (1-13/16)
Thread Size (Inch)	#3-48
Number of Flutes	2
Limit	H2
Type	Semi Bottom
Substrate	High Speed Steel
Coating	ZrN
Product Type	Spiral Flute Tap
