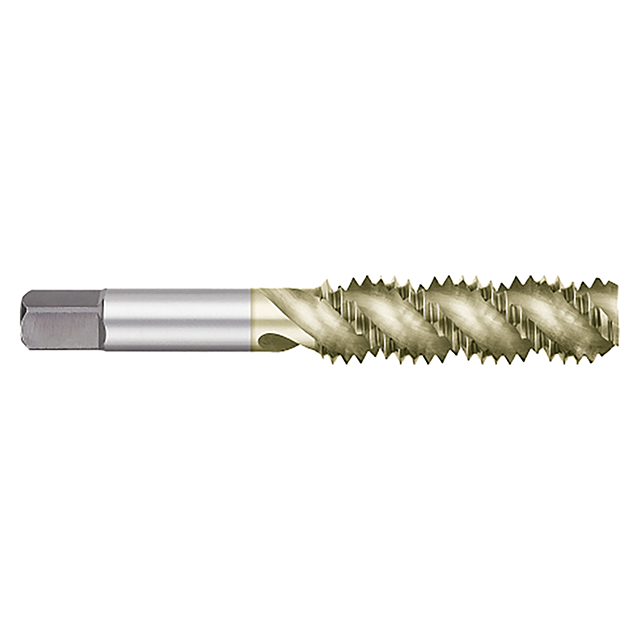

Titan USA TT89125 | #12-24 Thread x 0.2200" Shank x 0.9375" (15/16) Thread Length x 2.3750" (2-3/8) OAL H3 Limit 3 Flute ZrN Coated High Speed Steel Semi Bottom Spiral Flute Tap

$21.33
interval quantity:
1
SKU:
17981574
Weight:
0.02 LBS
Shipping:
Calculated at Checkout

Features:

  • Optimized for relatively deep hole tapping in copper, brass, aluminum, and other soft ductile materials
  • Slightly longer chamfer distributes cutting over greater number of teeth for increased production
  • Can be used for plug or bottoming applications
  • 52 Degree helix
  • Taps are on blanks that meet ANSI specifications
  • ZrN coating offers increased speed rates and prolonged tool life
  • High speed steel
  • CNC ground in the USA

Product Specifications
Manufacturer Part NumberTT89125
Across Flat (Inch)0.1650"
Length of Cut (Inch)0.9375" (15/16)
End Length (Inch)0.2813"
Shank Diameter (Inch)0.2200"
Overall Length (Inch)2.3750" (2-3/8)
Thread Size (Inch)#12-24
Number of Flutes3
LimitH3
TypeSemi Bottom
SubstrateHigh Speed Steel
CoatingZrN
Product TypeSpiral Flute Tap
