Features:
- Optimized for relatively deep hole tapping in copper, brass, aluminum, and other soft ductile materials
- Slightly longer chamfer distributes cutting over greater number of teeth for increased production
- Can be used for plug or bottoming applications
- 52 Degree helix
- Taps are on blanks that meet ANSI specifications
- ZrN coating offers increased speed rates and prolonged tool life
- High speed steel
- CNC ground in the USA
Product Specifications
| Manufacturer Part Number | TT89151 |
| Across Flat (Inch) | 0.3220" |
| Length of Cut (Inch) | 1.6563" |
| End Length (Inch) | 0.5000" (1/2) |
| Shank Diameter (Inch) | 0.4290" |
| Overall Length (Inch) | 3.5938" |
| Thread Size (Inch) | 9/16"-18 |
| Number of Flutes | 4 |
| Limit | H3 |
| Type | Semi Bottom |
| Substrate | High Speed Steel |
| Coating | ZrN |

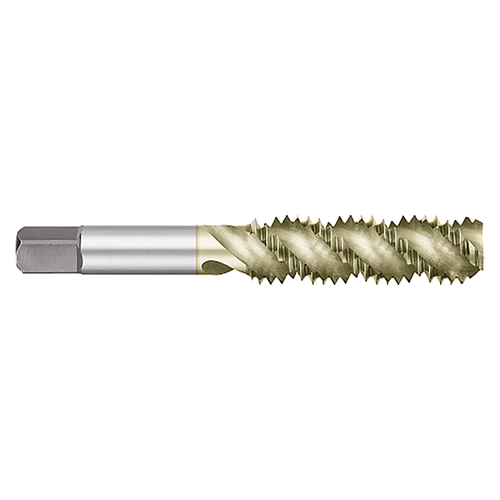

| Product Type | Spiral Flute Tap |
