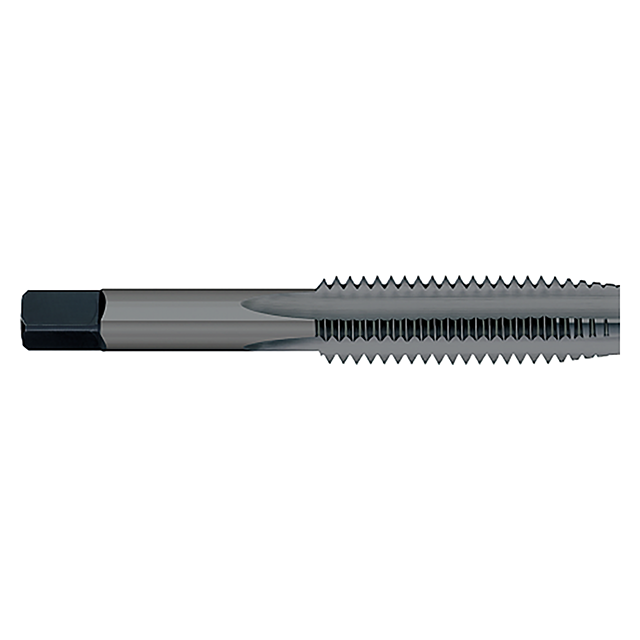

This offering of Titan USA Hand Taps feature high speed steel CNC cutting tools tools that are Steam Oxide finished for decreased galling and increased lubricity in low carbon steels and gummy materials.
Features:
- For optimal results, use a Taper Tap for an initial pass, prior to using a Plug or Bottom Tap to finish the thread
- Taps are on blanks that meet ANSI specifications
- Steam Oxide finish provides decreased galling and increased lubricity in low carbon steels and gummy materials
- High speed steel
- CNC ground in the USA
Product Specifications
| Manufacturer Part Number | TT90323S |
| Across Flat (Inch) | 0.1910" |
| Length of Cut (Inch) | 1.0000" (1) |
| End Length (Inch) | 0.3125" (5/16) |
| Shank Diameter (Inch) | 0.2550" |
| Limit | H3 |
| Overall Length (Inch) | 2.5000" (2-1/2) |
| Thread Size (Inch) | 1/4"-20 |
| Type | Taper |
| Number of Flutes | 4 |
| Substrate | High Speed Steel |
| Coating | Steam-Oxide |
| Product Type | Straight Flute Taper Tap |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
