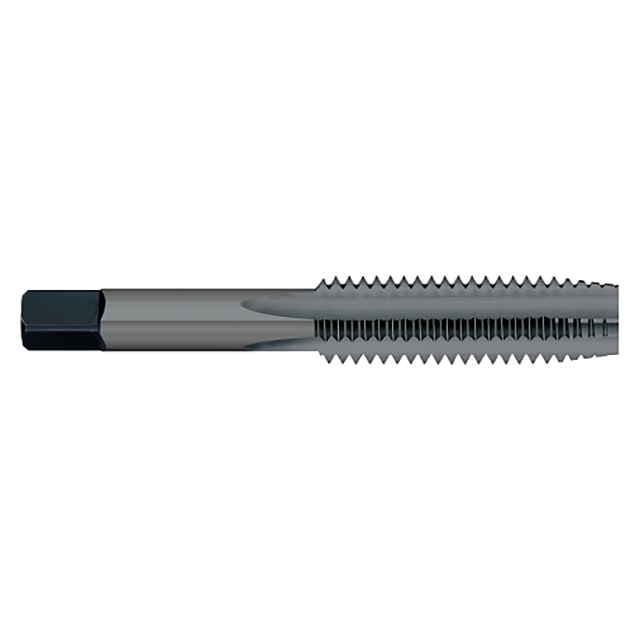

Titan USA TT90424NS | 3/8"-16 Thread x 0.3810" Shank x 1.2500" (1-1/4) LOC x 2.9375" (2-15/16) OAL 4 Flute Nitride & Steam Oxide Coated high speed steel Bottom Straight Flute Tap

$7.29
interval quantity:
1
SKU:
17981991
Weight:
0.07 LBS
Shipping:
Calculated at Checkout

Optimized for all types of gray, ductile, and malleable cast iron ferrous materials, this Titan USA offering of high speed steel hand taps are Nitride & Steam Oxide finished for increased tool life and lubrication in cast iron.

Features:

  • Optimized for all types of gray, ductile, and malleable cast iron ferrous materials.
  • Taps are on blanks that meet ANSI specifications
  • Nitride & Steam Oxide finish provides increased surface hardness and acts as a lubricant and also retains liquid lubricant at cutting edge, preventing chip welding and reducing friction
  • high speed steel
  • CNC ground in the USA

Product Specifications
Manufacturer Part NumberTT90424NS
Across Flat (Inch)0.2860"
Length of Cut (Inch)1.2500" (1-1/4)
End Length (Inch)0.4375" (7/16)
Shank Diameter (Inch)0.3810"
Overall Length (Inch)2.9375" (2-15/16)
Number of Flutes4
Thread Size (Inch)3/8"-16
LimitH3
TypeBottom
Substratehigh speed steel
CoatingNitride & Steam Oxide
Product TypeStraight Flute Tap
