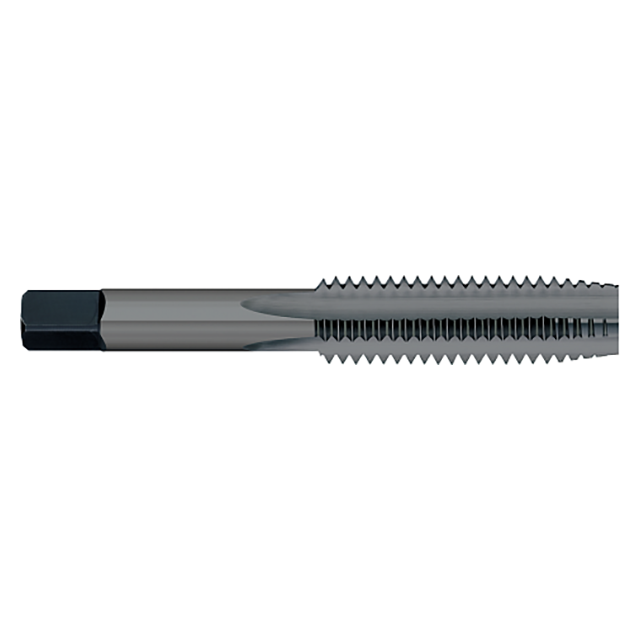

Optimized for all types of gray, ductile, and malleable cast iron ferrous materials, this Titan USA offering of high speed steel hand taps are Nitride & Steam Oxide finished for increased tool life and lubrication in cast iron.
Features:
- Optimized for all types of gray, ductile, and malleable cast iron ferrous materials.
- Taps are on blanks that meet ANSI specifications
- Nitride & Steam Oxide finish provides increased surface hardness and acts as a lubricant and also retains liquid lubricant at cutting edge, preventing chip welding and reducing friction
- high speed steel
- CNC ground in the USA
Product Specifications
| Manufacturer Part Number | TT90467NS |
| Across Flat (Inch) | 0.2420" |
| Length of Cut (Inch) | 1.4375" (1-7/16) |
| End Length (Inch) | 0.4063" |
| Shank Diameter (Inch) | 0.3230" |
| Overall Length (Inch) | 3.1563" |
| Number of Flutes | 4 |
| Thread Size (Inch) | 7/16"-14 |
| Limit | H3 |
| Type | Bottom |
| Substrate | high speed steel |
| Coating | Nitride & Steam Oxide |
| Product Type | Straight Flute Tap |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
