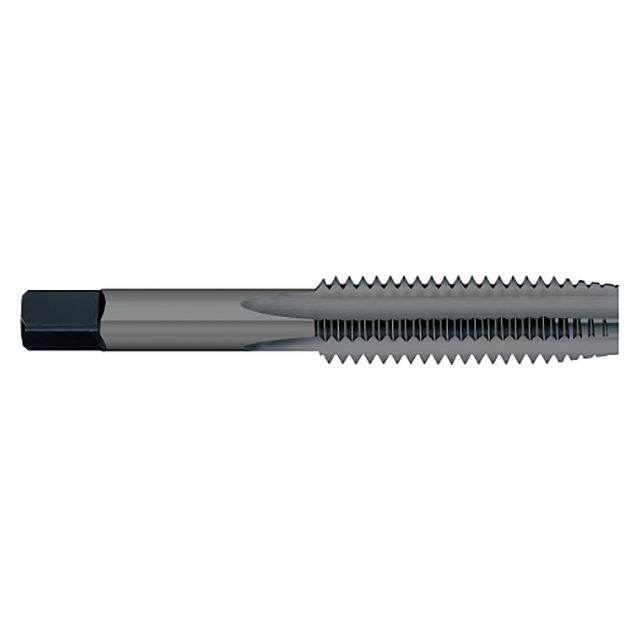

Titan USA TT90578NS | 5/8"-18 Thread x 0.4800" Shank x 1.8125" (1-13/16) LOC x 3.8125" (3-13/16) OAL 4 Flute Nitride & Steam Oxide Coated high speed steel Plug Straight Flute Tap

$26.37
interval quantity:
1
SKU:
17982111
Weight:
0.18 LBS
Shipping:
Calculated at Checkout

Optimized for all types of gray, ductile, and malleable cast iron ferrous materials, this Titan USA offering of high speed steel hand taps are Nitride & Steam Oxide finished for increased tool life and lubrication in cast iron.

Features:

  • Optimized for all types of gray, ductile, and malleable cast iron ferrous materials.
  • Taps are on blanks that meet ANSI specifications
  • Nitride & Steam Oxide finish provides increased surface hardness and acts as a lubricant and also retains liquid lubricant at cutting edge, preventing chip welding and reducing friction
  • high speed steel
  • CNC ground in the USA

Product Specifications
Manufacturer Part NumberTT90578NS
Across Flat (Inch)0.3600"
Length of Cut (Inch)1.8125" (1-13/16)
End Length (Inch)0.5625" (9/16)
Shank Diameter (Inch)0.4800"
Overall Length (Inch)3.8125" (3-13/16)
Number of Flutes4
Thread Size (Inch)5/8"-18
LimitH3
TypePlug
Substratehigh speed steel
CoatingNitride & Steam Oxide
Product TypeStraight Flute Tap
