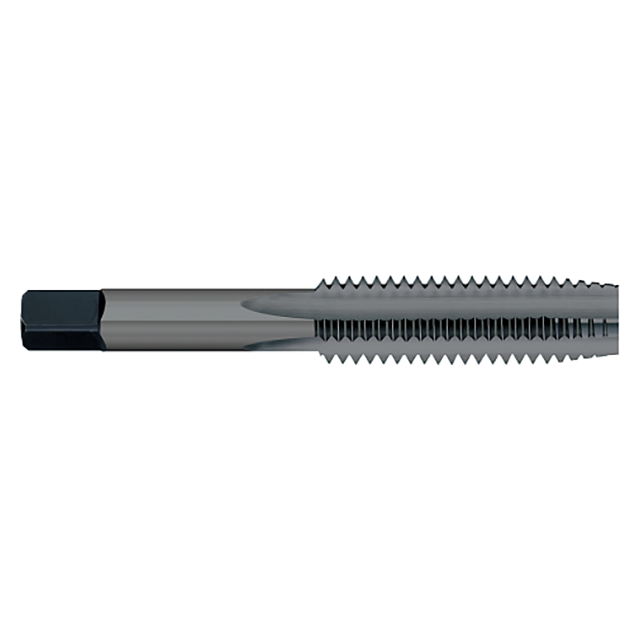

Titan USA TT90628NS | 7/8"-9 Thread x 0.6970" Shank x 2.2188" LOC x 4.6875" (4-11/16) OAL 4 Flute Nitride & Steam Oxide Coated high speed steel Bottom Straight Flute Tap

$50.27
interval quantity:
1
SKU:
17982155
Weight:
0.44 LBS
Shipping:
Calculated at Checkout

Optimized for all types of gray, ductile, and malleable cast iron ferrous materials, this Titan USA offering of high speed steel hand taps are Nitride & Steam Oxide finished for increased tool life and lubrication in cast iron.

Features:

  • Optimized for all types of gray, ductile, and malleable cast iron ferrous materials.
  • Taps are on blanks that meet ANSI specifications
  • Nitride & Steam Oxide finish provides increased surface hardness and acts as a lubricant and also retains liquid lubricant at cutting edge, preventing chip welding and reducing friction
  • high speed steel
  • CNC ground in the USA

Product Specifications
Manufacturer Part NumberTT90628NS
Across Flat (Inch)0.5230"
Length of Cut (Inch)2.2188"
End Length (Inch)0.7500" (3/4)
Shank Diameter (Inch)0.6970"
Overall Length (Inch)4.6875" (4-11/16)
Number of Flutes4
Thread Size (Inch)7/8"-9
LimitH4
TypeBottom
Substratehigh speed steel
CoatingNitride & Steam Oxide
Product TypeStraight Flute Tap
