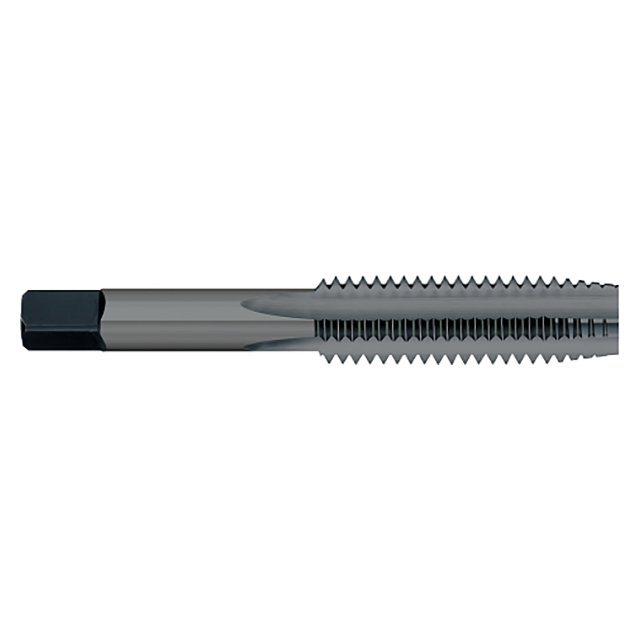

Titan USA TT90648NS | 1"-8 Thread x 0.8000" Shank x 2.5000" (2-1/2) LOC x 5.1250" OAL 4 Flute Nitride & Steam Oxide Coated high speed steel Bottom Straight Flute Tap

$66.83
interval quantity:
1
SKU:
17982177
Weight:
0.63 LBS
Shipping:
Calculated at Checkout

Optimized for all types of gray, ductile, and malleable cast iron ferrous materials, this Titan USA offering of high speed steel hand taps are Nitride & Steam Oxide finished for increased tool life and lubrication in cast iron.

Features:

  • Optimized for all types of gray, ductile, and malleable cast iron ferrous materials.
  • Taps are on blanks that meet ANSI specifications
  • Nitride & Steam Oxide finish provides increased surface hardness and acts as a lubricant and also retains liquid lubricant at cutting edge, preventing chip welding and reducing friction
  • high speed steel
  • CNC ground in the USA

Product Specifications
Manufacturer Part NumberTT90648NS
Across Flat (Inch)0.6000"
Length of Cut (Inch)2.5000" (2-1/2)
End Length (Inch)0.8125" (13/16)
Shank Diameter (Inch)0.8000"
Overall Length (Inch)5.1250"
Number of Flutes4
Thread Size (Inch)1"-8
LimitH4
TypeBottom
Substratehigh speed steel
CoatingNitride & Steam Oxide
Product TypeStraight Flute Tap
