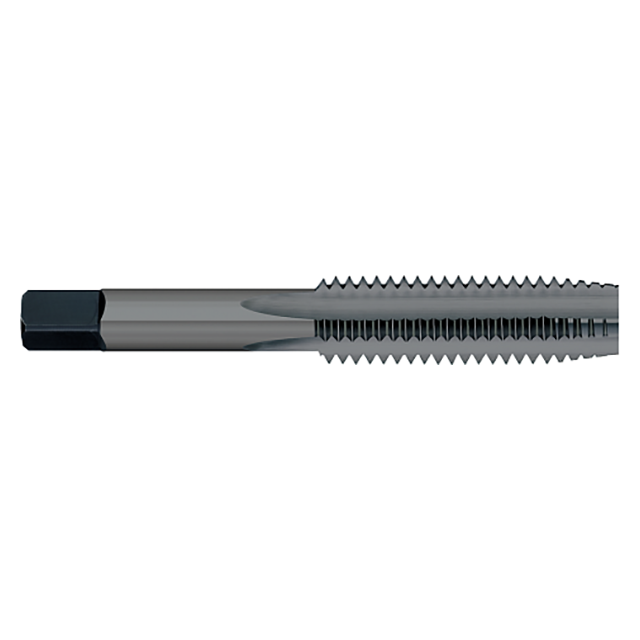

Titan USA TT90678NS | 1-1/4"-7 Thread x 1.0210" Shank x 2.5625" (2-9/16) LOC x 5.7500" OAL 4 Flute Nitride & Steam Oxide Coated high speed steel Bottom Straight Flute Tap

$135.81
interval quantity:
1
SKU:
17982219
Weight:
1.17 LBS
Shipping:
Free Shipping

Optimized for all types of gray, ductile, and malleable cast iron ferrous materials, this Titan USA offering of high speed steel hand taps are Nitride & Steam Oxide finished for increased tool life and lubrication in cast iron.

Features:

  • Optimized for all types of gray, ductile, and malleable cast iron ferrous materials.
  • Taps are on blanks that meet ANSI specifications
  • Nitride & Steam Oxide finish provides increased surface hardness and acts as a lubricant and also retains liquid lubricant at cutting edge, preventing chip welding and reducing friction
  • high speed steel
  • CNC ground in the USA

Product Specifications
Manufacturer Part NumberTT90678NS
Across Flat (Inch)0.7660"
Length of Cut (Inch)2.5625" (2-9/16)
End Length (Inch)1.0000" (1)
Shank Diameter (Inch)1.0210"
Overall Length (Inch)5.7500"
Number of Flutes4
Thread Size (Inch)1-1/4"-7
LimitH4
TypeBottom
Substratehigh speed steel
CoatingNitride & Steam Oxide
Product TypeStraight Flute Tap
