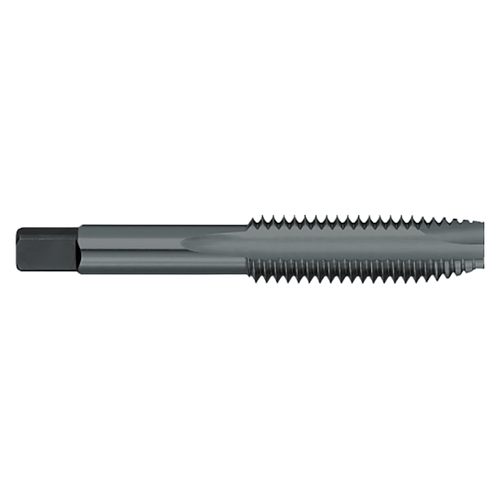

CNC ground in the USA from high speed steel onto blanks that meet ANSI specifications.
Features:
- General purpose spiral point plug taps
- Taps are on blanks that meet ANSI specifications
- High speed steel
- CNC ground in the USA
Product Specifications
| Manufacturer Part Number | TT91002 |
| Across Flat (Inch) | 0.1100" |
| Length of Cut (Inch) | 0.3750" (3/8) |
| End Length (Inch) | 0.1875" (3/16) |
| Shank Diameter (Inch) | 0.1410" |
| Overall Length (Inch) | 1.6875" (1-11/16) |
| Thread Size (Inch) | 1"-64 |
| Number of Flutes | 2 |
| Limit | H1 |
| Type | SP/PT Plug |
| Substrate | High Speed Steel |
| Coating | Uncoated |
| Product Type | Spiral Point Tap |
