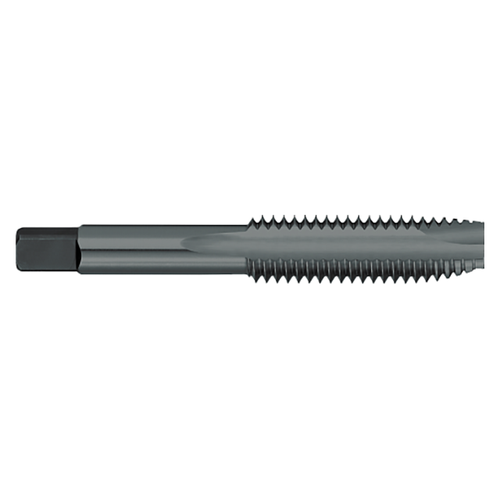

Titan USA TT91059NS | 5/16"-18 Thread x 0.3180" Shank x 1.1250" (1-1/8) LOC x 2.7188" OAL 2 Flute Nitride & Steam Oxide Coated High Speed Steel Spiral Point Tap

$6.57
interval quantity:
1
SKU:
17982404
Weight:
0.05 LBS
Shipping:
Calculated at Checkout

CNC ground in the USA from high speed steel onto blanks that meet ANSI specifications.

Features:

  • General purpose spiral point plug taps
  • Taps are on blanks that meet ANSI specifications
  • AlTiN coating offers increased wear and heat resistance
  • Steam Oxide finish provides decreased galling and increased lubricity in low carbon steels and gummy materials
  • Nitride & Steam Oxide finish provides increased surface hardness and acts as a lubricant and also retains liquid lubricant at cutting edge. Prevents chip welding and reduces friction
  • High speed steel
  • CNC ground in the USA

Product Specifications
Manufacturer Part NumberTT91059NS
Across Flat (Inch)0.2380"
Length of Cut (Inch)1.1250" (1-1/8)
End Length (Inch)0.3750" (3/8)
Shank Diameter (Inch)0.3180"
Overall Length (Inch)2.7188"
Thread Size (Inch)5/16"-18
Number of Flutes2
LimitH3
TypeSP/PT Plug
SubstrateHigh Speed Steel
CoatingNitride & Steam Oxide
Product TypeSpiral Point Tap
