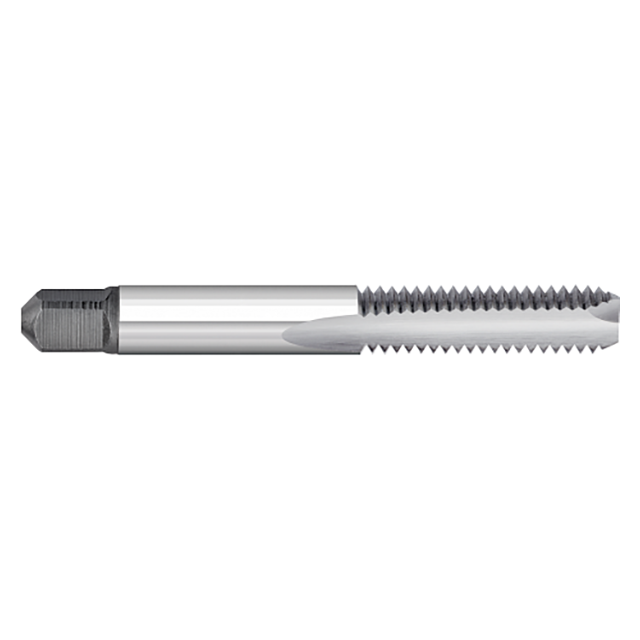

This Titan USA offering of general purpose, which provides improved performance in a wide variety of materials, and is generally used in applications with lower cutting speeds.
Features:
- General purpose spiral point plug taps
- Spiral point for through-hole applications
- Taps are on blanks that meet ANSI specifications
- High speed steel
- CNC ground in the USA
Product Specifications
| Manufacturer Part Number | TT91227 |
| Across Flat (Inch) | 0.1100" |
| Length of Cut (Inch) | 0.6875" (11/16) |
| End Length (Inch) | 0.1875" (3/16) |
| Shank Diameter (Inch) | 0.1410" |
| Overall Length (Inch) | 2.0000" (2) |
| Thread Size (Inch) | #6-40 |
| Limit | H2 |
| Type | SP/PT Bottom |
| Coating | Uncoated |
| Substrate | High Speed Steel |
| Number of Flutes | 2 |
| Product Type | Spiral Point Tap |
