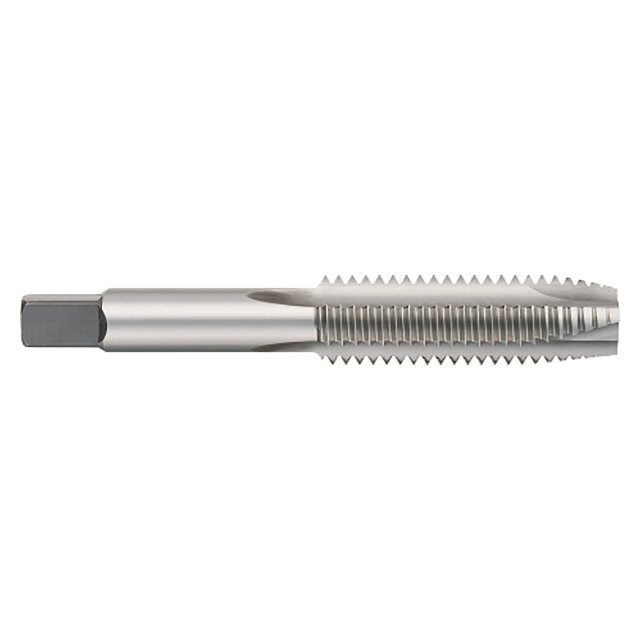

Titan USA TT91786 | 1/2"-13 Thread x 1.6563" Thread Length x 0.3670" Shank x 3.3750" (3-3/8) OAL H11 Limit Uncoated High Speed Steel Plug Spiral Point Tap

$29.40 $26.46
(You save $2.94)
Brand:
Titan USA
Shank Diameter (Decimal Inch):
0.3670"
Shank Diameter (mm):
9.32mm
Length of Cut (Inch):
1-21/32"
Length of Cut (Decimal Inch):
1.6563"
Length of Cut (mm):
42.07mm
Overall Length (Inch):
3-3/8"
Overall Length (Decimal Inch):
3.3750"
Overall Length (mm):
85.73mm
Number of Flutes:
3
Finish/Coating:
Uncoated
Material:
High Speed Steel
interval quantity:
1
SKU:
17982498
UPC:
Weight:
0.11 LBS
Minimum Purchase:
1 unit
Shipping:
Calculated at Checkout

Features:

  • High speed steel
  • Spiral point for through-hole applications
  • Taps are on blanks that meet ANSI specifications
  • Most commonly used when parts are to be plated after tapping
  • CNC ground in the USA

Product Specifications
Manufacturer Part NumberTT91786
Shank Diameter (Inch)0.3670"
Thread Length (Inch)1.6563"
Overall Length (Inch)3.3750" (3-3/8)
Thread Size (Inch)1/2"-13
Across Flat (Inch)0.2750"
End Length (Inch)0.4375" (7/16)
LimitH11
Number of Flutes3
CoatingUncoated
SubstrateHigh Speed Steel
TypePlug
Product TypeSpiral Point Tap

Warning:

This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.

For more information, visit www.P65Warnings.ca.gov
