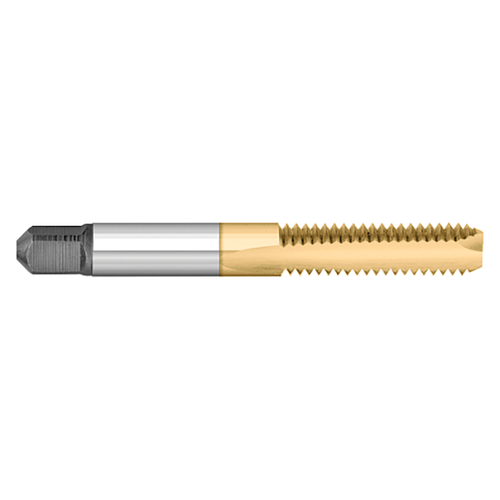

Titan USA TT92202 | #0-80 Thread x 0.1410" Shank x 0.3125" (5/16) LOC x 1.6250" (1-5/8) OAL 2 Flute TIN Coated High Speed Steel Spiral Point Tap

$29.07
interval quantity:
1
SKU:
17982500
Weight:
0.01 LBS
Shipping:
Calculated at Checkout

This Titan USA offering of general purpose, High Speed Steel Plug Taps feature TiN coating, which provides improved performance in a wide variety of materials, and is generally used in applications with lower cutting speeds.

Features:

  • General purpose spiral point plug taps
  • Spiral point for through-hole applications
  • Taps are on blanks that meet ANSI specifications
  • TiN coating provides improved performance in a wide variety of materials, and generally used in applications with lower cutting speeds
  • High speed steel
  • CNC ground in the USA

Product Specifications
Manufacturer Part NumberTT92202
Across Flat (Inch)0.1100"
Length of Cut (Inch)0.3125" (5/16)
End Length (Inch)0.1875" (3/16)
Shank Diameter (Inch)0.1410"
Overall Length (Inch)1.6250" (1-5/8)
Thread Size (Inch)#0-80
LimitH2
TypeSP/PT Bottom
CoatingTIN
SubstrateHigh Speed Steel
Number of Flutes2
Product TypeSpiral Point Tap
