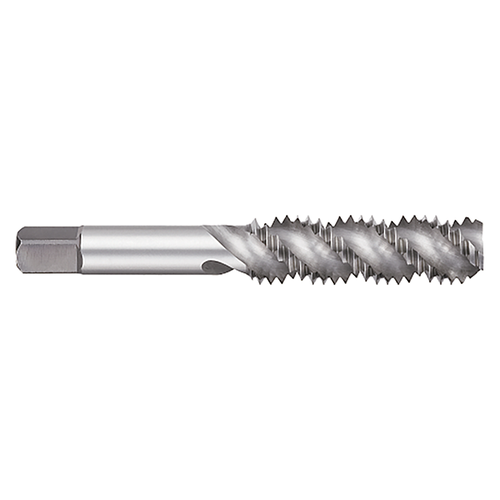

Features:
- High speed steel
- Spiral point for through-hole applications
- Taps are on blanks that meet ANSI specifications
- Oversized to produce threads that accept coil wire screw thread inserts of the same size and pitch
- CNC ground in the USA
Product Specifications
| Manufacturer Part Number | TT92385 |
| Across Flat (Inch) | 0.2750" |
| Thread Length (Inch) | 1.6563" |
| End Length (Inch) | 0.4375" (7/16) |
| Shank Diameter (Inch) | 0.4800" |
| Overall Length (Inch) | 3.3750" (3-3/8) |
| Thread Size (Inch) | 1/2"-13 |
| Number of Flutes | 3 |
| Limit | H3 |
| Coating | Uncoated |
| Substrate | High Speed Steel |
| Type | Plug |
| Product Type | Spiral Point STI Tap |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
