Features:
- High speed steel
- Taps are on blanks that meet ANSI specifications
- Bottom - 2.5 Thread Chamfer for blind hole tapping
- Lube grooves for lubrication and venting in blind holes
- Thread forming taps have no flutes or cutting edges and provide chipless tapping
- TiN coating provides improved performance in a wide variety of materials, and is generally used in applications with lower cutting speeds
- CNC ground in the USA
Product Specifications

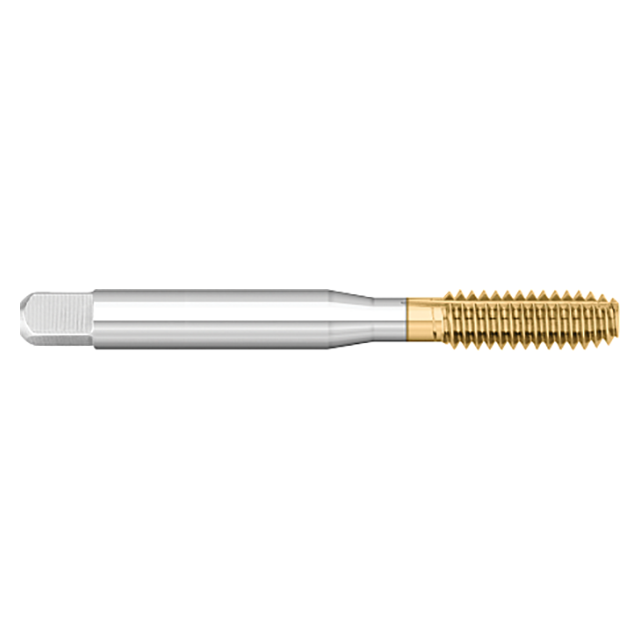

| Manufacturer Part Number | TT92818 |
| Shank Diameter (Inch) | 0.1410" |
| Thread Length (Inch) | 0.5000" (1/2) |
| Overall Length (Inch) | 1.8125" (1-13/16) |
| Thread Size (Inch) | #3-48 |
| Across Flat (Inch) | 0.1100" |
| End Length (Inch) | 0.1875" (3/16) |
| Lube Grooves | 0 |
| Limit | H3 |
| Coating | TiN |
| Substrate | High Speed Steel |
| Type | Bottom |
| Product Type | Thread Forming Tap |
