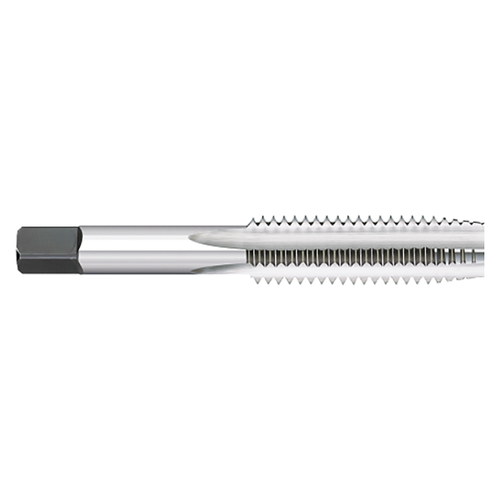

This metric Titan USA offering features uncoated high speed steel hand taps that are CNC ground in the USA on blanks that meet ANSI specifications.
Features:
- For optimal results, use a Taper Tap for an initial pass, prior to using a Plug or Bottom Tap to finish the thread
- High speed steel
- CNC ground in the USA
Product Specifications
| Manufacturer Part Number | TT93084 |
| Across Flat (Inch) | 0.5700" |
| Length of Cut (Inch) | 2.2188" |
| End Length (Inch) | 0.7500" (3/4) |
| Shank Diameter (Inch) | 0.7600" |
| Overall Length (Inch) | 4.9063" |
| Thread Size (Inch) | M24 X 3.0 |
| Number of Flutes | 4 |
| Limit | D8 |
| Type | Bottom |
| Substrate | High Speed Steel |
| Coating | Uncoated |
| Product Type | Straight Flute Tap |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
Titan USA
Thread Size (mm):
M24 X 3.0
Thread Limit:
D8
Overall Length (Inch):
4-29/32"
Overall Length (Decimal Inch):
4.9063"
Overall Length (mm):
124.62mm
Number of Flutes:
4
Material:
High Speed Steel
Finish/Coating:
Uncoated
