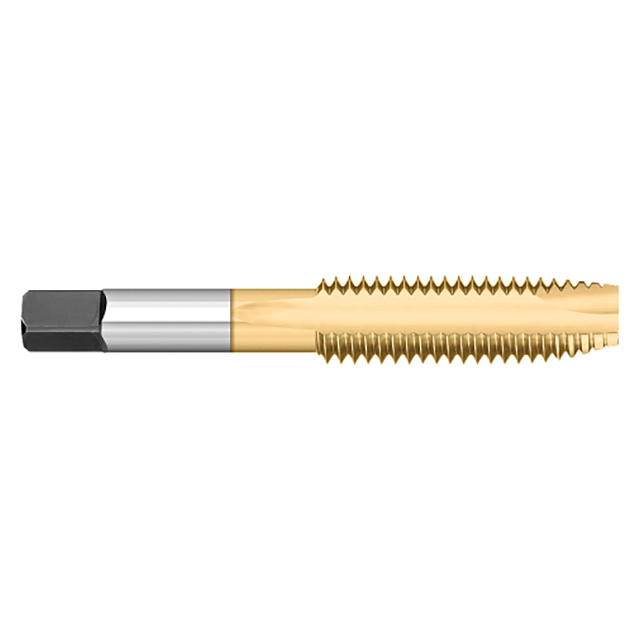

This Titan USA offering of metric, general purpose, High Speed Steel Plug Taps feature TiN coating, which provides improved performance in a wide variety of materials, and is generally used in applications with lower cutting speeds.
Features:
- General purpose spiral point plug taps
- Spiral point for through-hole applications
- Taps are on blanks that meet ANSI specifications
- TiN coating provides improved performance in a wide variety of materials, and generally used in applications with lower cutting speeds
- High speed steel
- CNC ground in the USA
Product Specifications
| Manufacturer Part Number | TT93214TIN |
| Across Flat (Inch) | 0.1100" |
| Length of Cut (Inch) | 0.5000" (1/2) |
| End Length (Inch) | 0.1875" (3/16) |
| Shank Diameter (Inch) | 0.1410" |
| Overall Length (Inch) | 1.8125" (1-13/16) |
| Thread Size (Inch) | M2.5 X 0.45 |
| Limit | D3 |
| Type | SP/PT Plug |
| Number of Flutes | 2 |
| Substrate | High Speed Steel |
| Coating | TIN |
| Product Type | Spiral Point Tap |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
Titan USA
Shank Diameter (Decimal Inch):
0.1410"
Shank Diameter (mm):
3.58mm
Length of Cut (Inch):
1/2"
Length of Cut (Decimal Inch):
0.5000"
Length of Cut (mm):
12.70mm
Overall Length (Inch):
1-13/16"
Overall Length (Decimal Inch):
1.8125"
Overall Length (mm):
46.04mm
Number of Flutes:
2
Finish/Coating:
TiN
Material:
High Speed Steel
