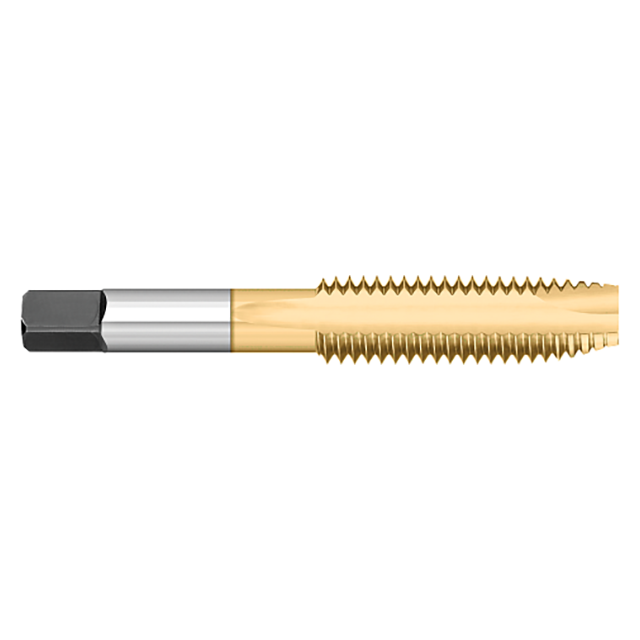

This Titan USA offering of metric, general purpose, High Speed Steel Plug Taps feature TiN coating, which provides improved performance in a wide variety of materials, and is generally used in applications with lower cutting speeds.
Features:
- General purpose spiral point plug taps
- Spiral point for through-hole applications
- Taps are on blanks that meet ANSI specifications
- TiN coating provides improved performance in a wide variety of materials, and generally used in applications with lower cutting speeds
- High speed steel
- CNC ground in the USA
Product Specifications
| Manufacturer Part Number | TT93223TIN |
| Across Flat (Inch) | 0.1310" |
| Length of Cut (Inch) | 0.7500" (3/4) |
| End Length (Inch) | 0.2500" (1/4) |
| Shank Diameter (Inch) | 0.1680" |
| Overall Length (Inch) | 2.1250" (2-1/8) |
| Thread Size (Inch) | M4 X 0.7 |
| Limit | D4 |
| Type | SP/PT Plug |
| Number of Flutes | 2 |
| Substrate | High Speed Steel |
| Coating | TIN |
| Product Type | Spiral Point Tap |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
