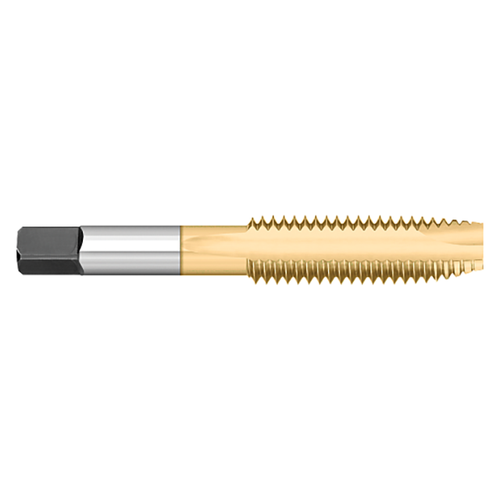

Titan USA TT93229TIN | M5 X 0.8 Thread x 0.1940" Shank x 0.8750" (7/8) LOC x 2.3750" (2-3/8) OAL 2 Flute TIN Coated High Speed Steel Spiral Point Tap

$9.68
interval quantity:
1
SKU:
17982742
Weight:
0.02 LBS
Shipping:
Calculated at Checkout

This Titan USA offering of metric, general purpose, High Speed Steel Plug Taps feature TiN coating, which provides improved performance in a wide variety of materials, and is generally used in applications with lower cutting speeds.

Features:

  • General purpose spiral point plug taps
  • Spiral point for through-hole applications
  • Taps are on blanks that meet ANSI specifications
  • TiN coating provides improved performance in a wide variety of materials, and generally used in applications with lower cutting speeds
  • High speed steel
  • CNC ground in the USA

Product Specifications
Manufacturer Part NumberTT93229TIN
Across Flat (Inch)0.1520"
Length of Cut (Inch)0.8750" (7/8)
End Length (Inch)0.2500" (1/4)
Shank Diameter (Inch)0.1940"
Overall Length (Inch)2.3750" (2-3/8)
Thread Size (Inch)M5 X 0.8
LimitD4
TypeSP/PT Plug
Number of Flutes2
SubstrateHigh Speed Steel
CoatingTIN
Product TypeSpiral Point Tap
