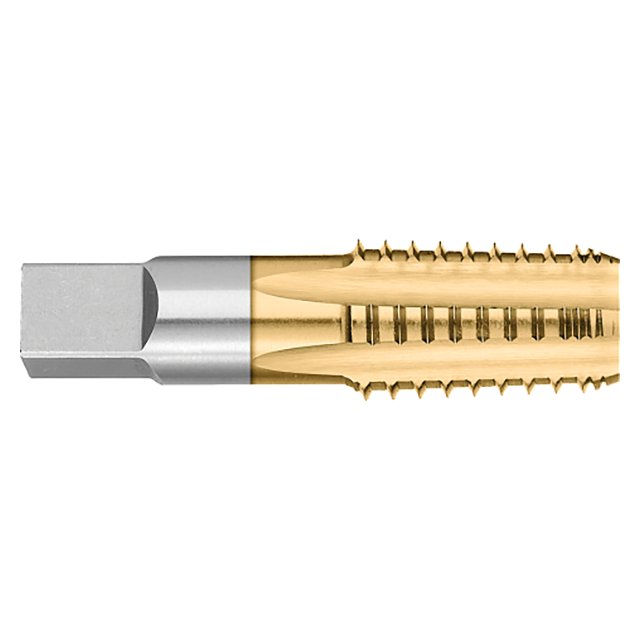

This offering of N.P.T.F. Dryseal Interrupted Taper Pipe Taps are engineered to reduce friction and allow for better lubrication, and feature TiN coating which provides improved performance in a wide variety of materials.
Features:
- General purpose NPTF dryseal pipe taps
- Interrupted threads reduce friction and allow for better lubrication
- Taps are on blanks that meet ANSI specifications
- TiN coating provides improved performance in a wide variety of materials, and generally used in applications with lower cutting speeds
- High speed steel
- CNC ground in the USA
Product Specifications
| Manufacturer Part Number | TT94012TIN |
| Across Flat (Inch) | 0.6790" |
| Length of Cut (Inch) | 1.3750" (1-3/8) |
| End Length (Inch) | 0.6875" (11/16) |
| Shank Diameter (Inch) | 0.9063" |
| Overall Length (Inch) | 3.2500" (3-1/4) |
| Thread Size (Inch) | 3/4"-14 |
| Number of Flutes | 5 |
| Substrate | High Speed Steel |
| Thread Type | NPTF-Interrupted |
| Coating | TIN |
| Product Type | Standard Pipe Tap |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
Titan USA
Shank Diameter (Decimal Inch):
0.9063"
Shank Diameter (mm):
23.02mm
Length of Cut (Inch):
1-3/8"
Length of Cut (Decimal Inch):
1.3750"
Length of Cut (mm):
34.93mm
Overall Length (Inch):
3-1/4"
Overall Length (Decimal Inch):
3.2500"
Overall Length (mm):
82.55mm
Number of Flutes:
5
Finish/Coating:
TiN
Material:
High Speed Steel
