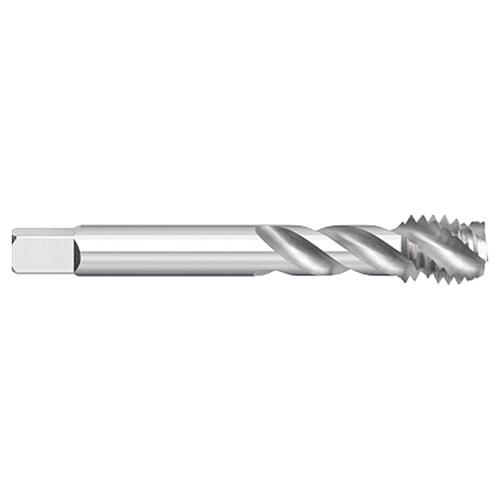

Titan USA TT96903 | 2"-56 Thread x 0.1410" Shank x 1.7500" (1-3/4) OAL x 0.4380" LOC 2 Flute Steam-Oxide Coated Powdered Metal Spiral Point Tap

$24.30 $20.90
(You save $3.40)
Brand:
Titan USA
Shank Diameter (Decimal Inch):
0.1410"
Shank Diameter (mm):
3.58mm
Length of Cut (Inch):
7/16"
Length of Cut (Decimal Inch):
0.4380"
Length of Cut (mm):
11.13mm
Overall Length (Inch):
1-3/4"
Overall Length (Decimal Inch):
1.7500"
Overall Length (mm):
44.45mm
Number of Flutes:
2
Finish/Coating:
Steam Oxide
Material:
Powdered Metal
interval quantity:
1
SKU:
17982904
UPC:
Weight:
0.01 LBS
Minimum Purchase:
1 unit
Shipping:
Calculated at Checkout

Features:

  • Best used for through hole tapping applications
  • Optimized for steel, steel alloys, stainless steels, and a variety of other steels up to 32 Rc
  • Taps are on blanks that meet ANSI specifications
  • Steam Oxide finish provides decreased galling and increased lubricity in low carbon steels and gummy materials
  • Premium powdered metal
  • CNC ground in the USA

Product Specifications
Manufacturer Part NumberTT96903
Shank Diameter 0.1410"
Overall Length (Inch)1.7500" (1-3/4)
Length of Cut (Inch)0.4380"
Thread Size2"-56
End Length (Inch)0.1875" (3/16)
TypeSP/PT Plug
Thread LimitH2
Number of Flutes2
CoatingSTEAM-OXIDE
SubstratePowdered Metal
Product TypeSpiral Point Tap
