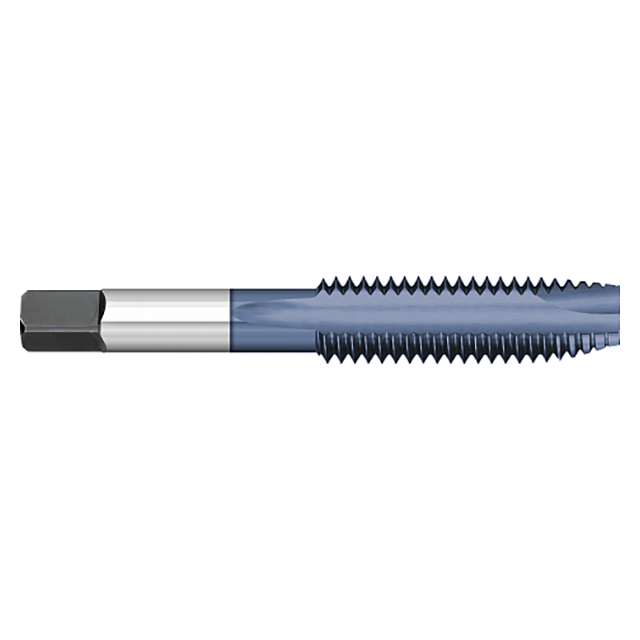

CNC ground in the USA from high speed steel onto blanks that meet ANSI specifications.
Features:
- General purpose spiral point plug taps
- Taps are on blanks that meet ANSI specifications
- AlTiN coating offers increased wear and heat resistance
- High speed steel
- CNC ground in the USA
Product Specifications
| Manufacturer Part Number | TT98011 |
| Across Flat (Inch) | 0.1910" |
| Length of Cut (Inch) | 1.0000" (1) |
| End Length (Inch) | 0.3125" (5/16) |
| Shank Diameter (Inch) | 0.2550" |
| Overall Length (Inch) | 2.5000" (2-1/2) |
| Thread Size (Inch) | 1/4"-20 |
| Number of Flutes | 2 |
| Limit | H3 |
| Type | SP/PT Plug |
| Substrate | High Speed Steel |
| Coating | ALTIN |
| Product Type | Spiral Point Tap |
